Bansbach easylift – Your expert for locking gas springs
Whether small or large: We will keep your application in any desired position!
Our locking gas springs are versatile.
They are available in both small and large sizes. This makes our locking gas springs suitable for all applications. They are space-saving and the space is optimally used. Our versatile equipment can be found in a wide variety of industries and applications. For example, in pilot seats, bistro tables, train seats, operating tables, forklifts and many others.
Our locking gas springs offer unique benefits such as…
… blocking in both directions
Our locking gas springs feature the ability to lock in both directions. This feature ensures precise control and a high level of security in your applications by effectively preventing unwanted movements.
…progression and special intermediate sizes
Our gas spring sizes are characterized by a very low characteristic curve and therefore an optimized course. For the user, this means that the extension force of the gas spring is practically the same at every point of the stroke. The difference in force between the retracted and extended piston rod is therefore very small. Our locking gas springs are available not only in standard sizes, but also in special "in-between sizes". These medium sizes are ideal if you require a lower pressure boost and want to achieve precise adjustments and a smooth flow.
... a wide range of sizes
We offer a wide range of locking gas springs from compact sizes 6/15 to robust 14/40. This flexibility allows you to precisely select the locking gas spring that best meets your specific requirements, whether for smaller, delicate applications or larger, high-performance projects.
...Exclusive models
A special feature in our assortment is the exotic locking gas spring 8/40. This model combines exceptional dimensions and performance to meet special requirements and offers an exclusive solution for the most demanding applications.
In addition, our small piston rod diameters offer a significant advantage where installation space is limited. The space required for the piston rod is only 6 mm. And the cylinder diameter of 15 mm does not take up much space either. Of course, we will also manufacture this gas spring exactly according to your requirements. You get the lift, pull-out force and fasteners you need for your application.
...We set new standards
With these features, we set new standards in locking gas spring technology and offer you customized solutions for every challenge. Rely on our expertise to meet your technical requirements with maximum precision and flexibility.
An overview of our lockable gas springs
Main type B - Flexible blocking
40 – 2,600 N Force
Stroke 10 – 800 mm
6/15 – 14/40 Avg
Main Type K - Firm blocking when extending, relatively firm when retracting
40 – 2,600 N Force
Stroke 10 – 700 mm
6/15 – 14/40 Avg
Main Type P - Firm blocking when retracting, relatively firm when extending
40 – 2,600 N Force
Stroke 30 – 300 mm
8/22 – 14/40 Avg
Main type KX - Fixed locking when extending and also when retracting
0-2600 N Force
Stroke 20 – 250 mm
10/22 – 14/40 Avg
More detailed information can be found at www.bansbach.com
Our mini gas springs are suitable for all applications!
The small series 3/8 mm, 3/10 mm, 4/12 mm and 6/15 mm are particularly suitable for applications with limited space due to their compact size. The required space is only 3 mm, 4 mm or 6 mm for the piston rod. The cylinder diameter of 8 mm, 10 mm, 12 mm or 15 mm enables use even in the smallest installation space!
Mini gas springs have a force of 7N to 400N and a stroke of 10mm to 150mm.
Thanks to CeramPro piston rings, mini gas springs are particularly resistant to corrosion, have low friction values and optimal movement properties. Of course, we manufacture our smallest gas springs exactly according to your wishes. Stroke, installation length, strength and connecting parts are optimally adapted to your application. This means that our gas springs can be used in a wide variety of applications, such as:
And of course, all these size series are also available as shock absorbers!
THE RIGHT SPEED FOR YOUR APPLICATION!
We dampen and regulate your speed individually, regardless of the mounting position of the gas spring!
Individual damping with a dynamic groove in the cylinder body.
Thanks to the groove that is located in the body of the cylinder of this gas spring variant, the damping properties of the gas spring can be very individually adapted to the respective requirements of the customer. A very gentle transition to damping is possible and thus the structure itself can be protected. The groove is designed so that the damping characteristics meet the individual requirements of the customer.
Dynamic groove is used in a wide variety of industries. The most important industries include healthcare, the furniture industry, engineering and the production of special vehicles, as well as many other industries.
ADVANTAGES OF DYNAMIC GROOVE:
- Ultimate damping guaranteed in every mounting position (horizontal or with piston rod pointing up).
- Controlled damping possible regardless of position.
- Individual damping characteristics are possible throughout the stroke.
#THIS IS BANSBACH Your temperature expert. Is your app starting to sweat?
Our gas springs stay cool!
Bansbach easylift gas springs are high quality products and can be used in extreme applications depending on the design. The durability of our gas springs is affected by a number of factors, and therefore the limits must not be exceeded. The basis is the standard types according to our catalog. Dimensional changes from standard lengths are possible, but must be requested individually. Please note that damping behavior/life may be affected when used in maximum temperature ranges. We have defined 4 ranges for optimal products in our temperature scale.

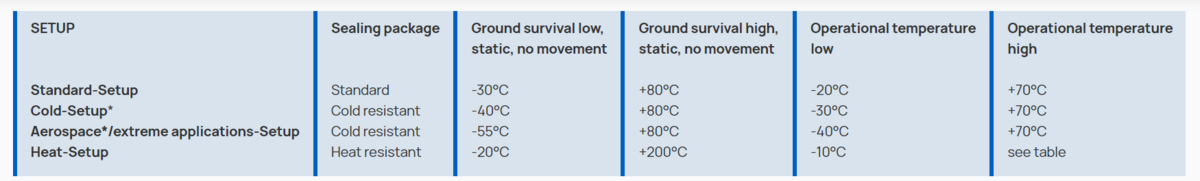

Our temperature settings:
