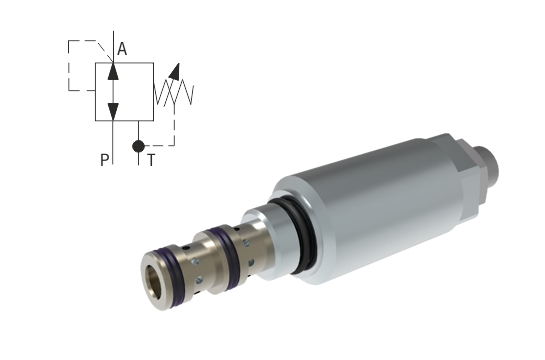

We present a new directly controlled pressure reducing valve with damping of the slide movement, designed for chamber A3 (c-8-3), with connection thread ¾-16 UNF.

ARGO - HYTOS: New

SP2A-A3 / H

Technical parameters :

  • standard chamber size 3 / 4-16 UNF (C-8-3)
  • Maximum operating pressure 350 bar (5100 PSI)
  • Maximum flow 20 l / min (5 GPM)
  • Hydraulic damping of the movement of the valve
  • Low hysteresis, precise pressure control and low pressure losses
  • In the standard version, galvanized protection, corrosion resistance 240 h in NSS according to ISO 9227

Product benefits:

  • Independent setting of the reduced pressure from the value of the inlet pressure
  • Excellent stability over the entire flow range
  • Fast response to changes in dynamic pressure
  • Three-way valve with the function of securing the appliance circuit against pressure overload
  • Precisely made hardened key parts
  • Due to its construction, it is also suitable for mobile applications
