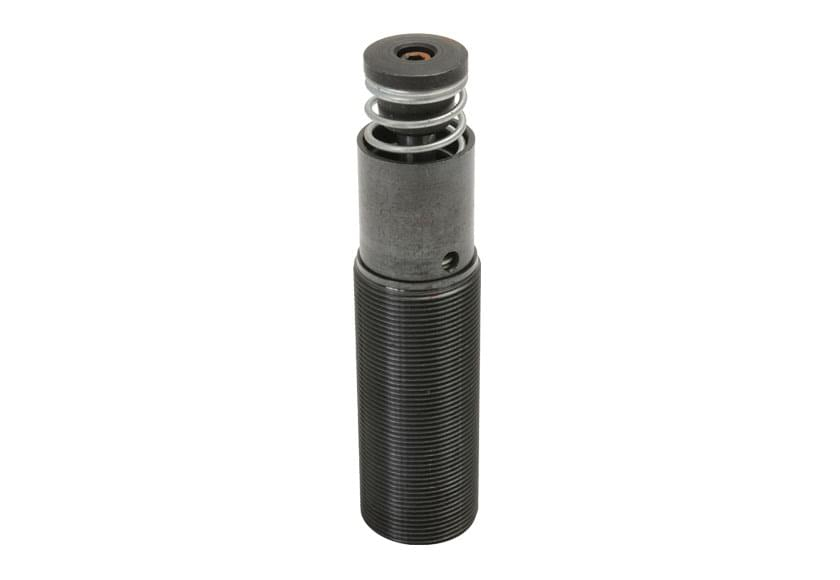

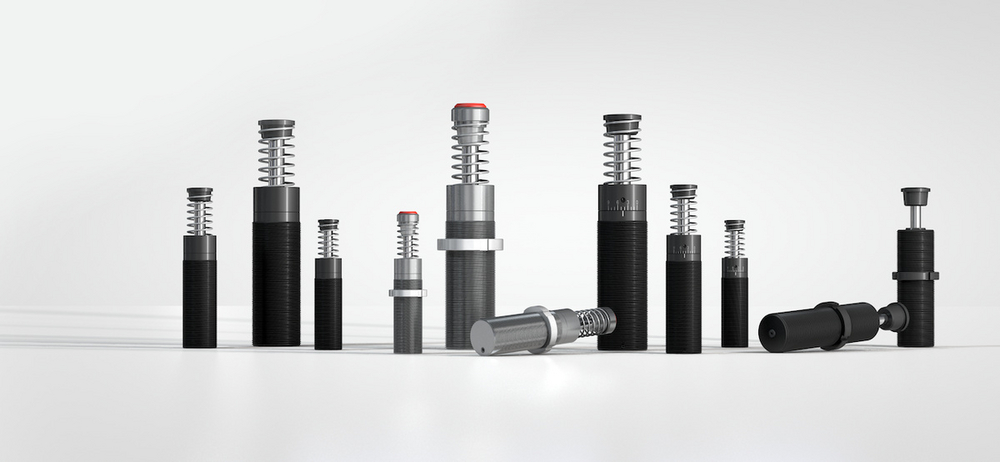

ACE industrial shock absorbers use innovative damping technology. By using them, moving masses are braked evenly along the entire stroke path. Result: lowest braking force and shortest braking time. The ACE MAGNUM series is considered the reference class for medium-sized sizes in the field of damping technology.

MC33 to MC64
Self-compensating, Energy absorption 170 Nm / stroke up to 5,650 Nm / stroke, Stroke 23.1 mm to 150 mm

MC33-V4A to MC64-V4A
Self-compensating, stainless steel, Energy absorption 170 Nm / stroke up to 3,730 Nm / stroke, Stroke 23.1 mm to 99.4 mm

MC33-HT to MC64-HT
Self-compensating, use from 0 ° C to 150 ° C, Energy absorption 170 Nm / stroke to 3.730 Nm / stroke, Stroke 23.1 mm to 99.4 mm

MC33-LT to MC64-LT
Self-compensating, use from -50 ° C to + 66 ° C, Energy absorption 170 Nm / stroke to 5,650 Nm / stroke, Stroke 23.1 mm to 150 mm

SC33 to SC45
Self-compensating, tubular piston system, Energy absorption 155 Nm / stroke up to 680 Nm / stroke, Stroke 23.1 mm to 48.6 mm

MA / ML33 to MA / ML64
Adjustable, Energy absorption 170 Nm / stroke up to 6,780 Nm / stroke, Stroke 23.1 mm to 150 mm
