CKD pneumatic cylinder
Standard Model Series Rollers SCW * 2; according to ISO 15552 (eg ISO6431)
- Type: Light profile cylinder with integrated T-groove according to ISO 15552
- Piston: Rolled stainless steel
- Tube: Aluminum profile, lightweight, hard anodized
- Facing: Aluminum alloy, heads sprayed
- Seals: NBR, polyurethane
- Damping: Pneumatic, adjustable - standard
- Diameter of cylinders [mm] 32, 40, 50, 63, 80, 100
- Stroke [mm]: 10 - 2500 * (1)
- Ambient temperature [ºC]: 0 - 80
- Working pressure [bar]: Max. 10
- Medium: Compressed air - filtered
- Lubrication: Not required
- Position sensors: Straight line fitting (recommended CSH)
- Special Features: On Demand
CKD series cylinders SCW * 2 - Standardized pneumatic cylinders conforming to ISO15552
![CKD SCW](https://www.bibus.sk/fileadmin/_processed_/1/0/csm_SCW2_web_SK_html_11_db730fd128.png)
![SCW CKD](https://www.bibus.sk/fileadmin/_processed_/1/3/csm_SCW2_web_SK_html_2_f925a25798.png)
User-friendly design puts emphasis on security, simplified setup and advanced features required in modern machines and devices
The weight of the SCW2 series is reduced by 20% compared to the first generation of ISO cylinders
Compact position sensors can be installed directly into the grooves in the body of the model series SCWP2
![SCW CKD](https://www.bibus.sk/fileadmin/_processed_/9/4/csm_SCW2_web_SK_html_3_61dc184697.png)

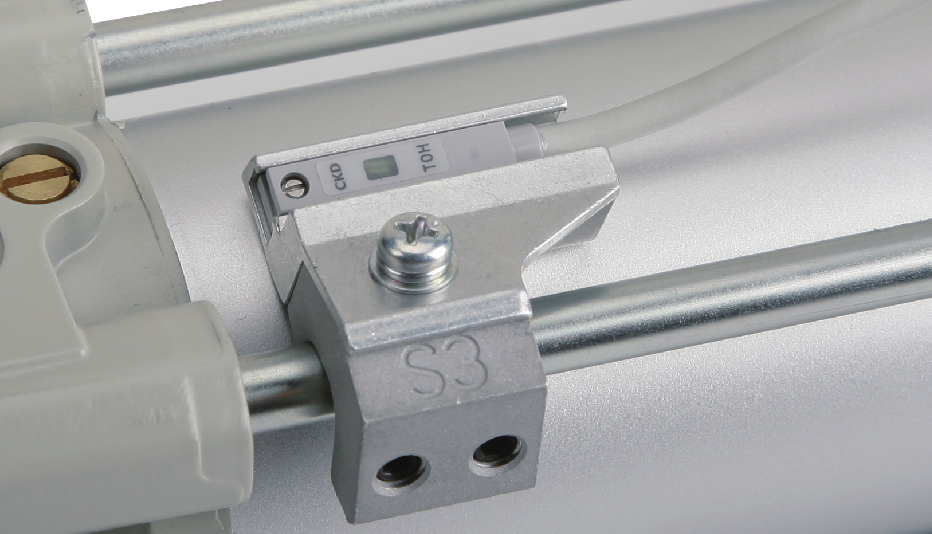

The ISO series cylinders of the SCWT2 series have a pre-assembled sensor mounting system on the cylinder bolt using a compact bracket
![SCW CKD](https://www.bibus.sk/fileadmin/_processed_/2/a/csm_SCW2_web_SK_html_4_ed43072fc8.png)
![SCW CKD](https://www.bibus.sk/fileadmin/_processed_/7/4/csm_SCW2_web_SK_html_5_1ee20f192f.png)

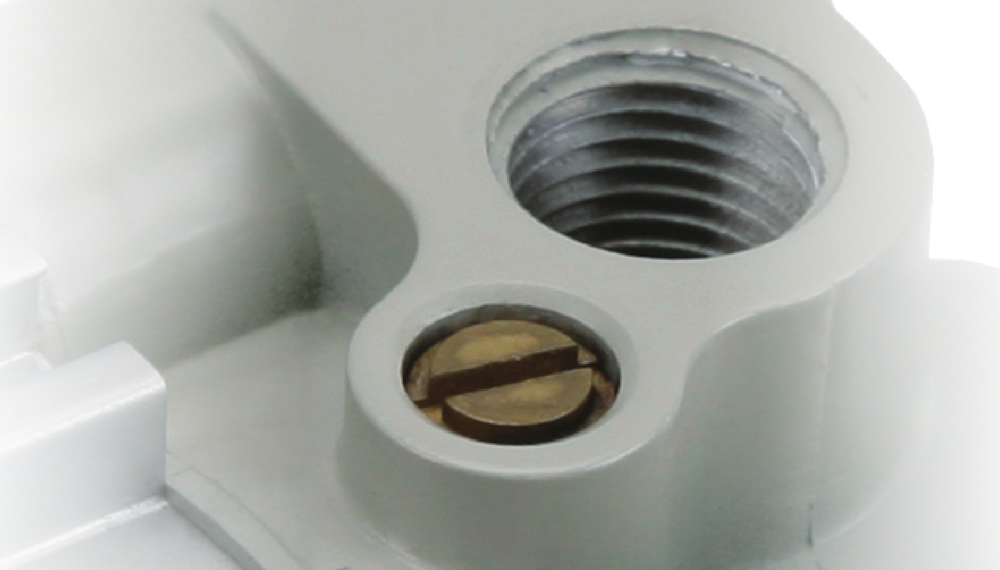

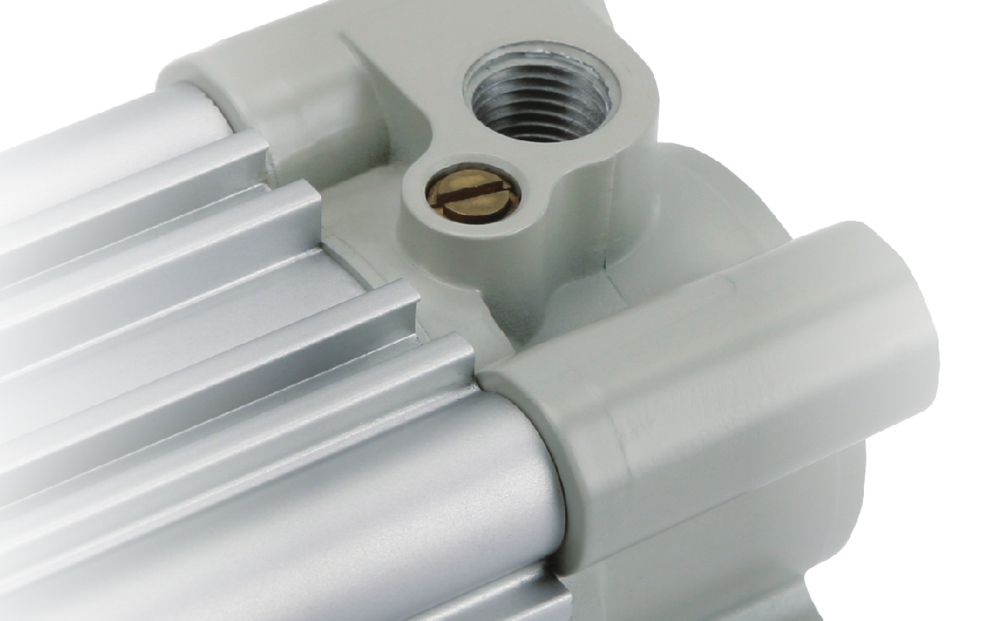

Air connection and damping control are located on the same flange of the cylinder flange, for ease of installation and damping settings at end positions
![SCW CKD](https://www.bibus.sk/fileadmin/_processed_/d/0/csm_SCW2_web_SK_html_6_530c3380da.png)

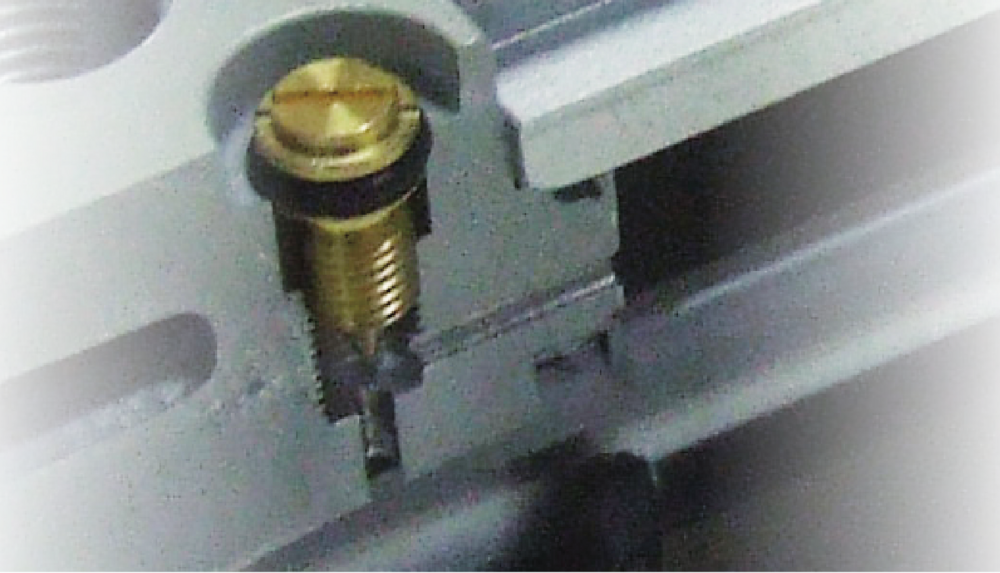

For safety reasons, the end damping valve needle valve is completely embedded in the cylinder flange. The setting is done with a flat screwdriver.
![SCW CKD](https://www.bibus.sk/fileadmin/_processed_/d/4/csm_SCW2_web_SK_html_7_0daef32cd5.png)

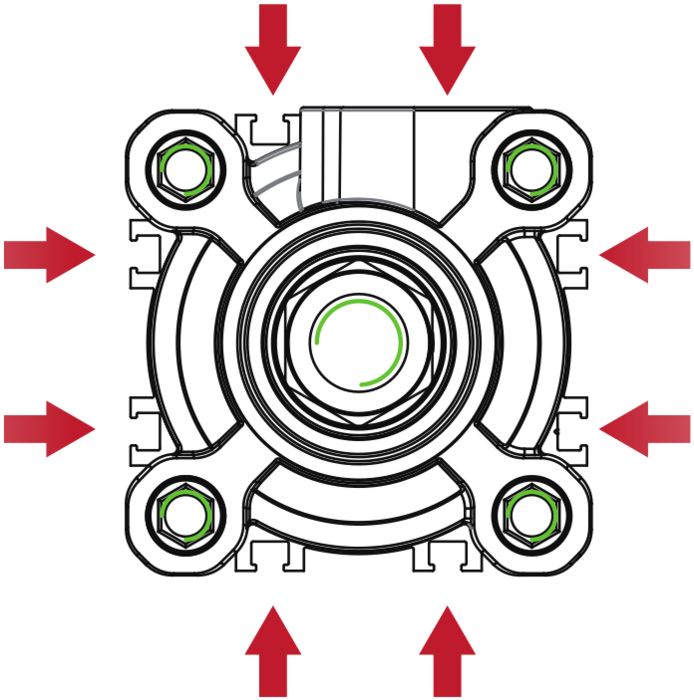

End position sensors can be installed in grooves (SCWP2) or bolt holders (SCWT2) on all four sides of the cylinder body
