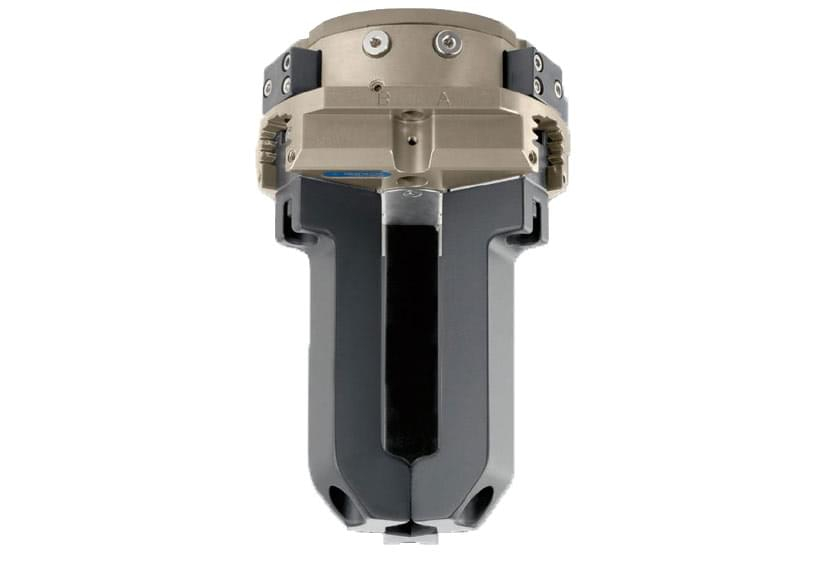

Schunk pneumatic 3-finger centric universal grippers - PZN-plus series
Universal centric gripper with large gripping force and high maximum moments thanks to multiple-tooth guidance for universal use, including in areas with special gripper requirements (temperature, chemical resistance, dirt, and many more) thanks to the diverse range of accessories available.
The piston is moved up or down by means of compressed air. Through its angled active surfaces, the wedge hook transforms this motion into the centric, synchronous gripping movement of the three base jaws.
Dust-protection versionAbsolutely dust-proof, increased degree of protection against the ingress of materials, for use in dusty environments
Anti-corrosion version
For use in corrosion-inducing atmospheres
High-temperature version
For use in hot environments
Increased grip version
When higher gripping forces are required
Advantages and benefits
- Robust multiple-tooth guidance for precise handling
- High moment load capabilities suitable for the use of long gripper fingers
- Wedge-hook design for high power transmission and synchronized gripping
- Air supply via hose-free direct connection or screw connections for the flexible supply of compressed air in all automation systems
- Comprehensive sensor accessories for diverse monitoring tasks and stroke position monitoring
- Diverse options (dust protection, high temperature, anti-corrosion and many more) for optimization to suit precisely your requirements
