Schunk pneumatic 3-finger centric sealed grippers - DPZ-plus

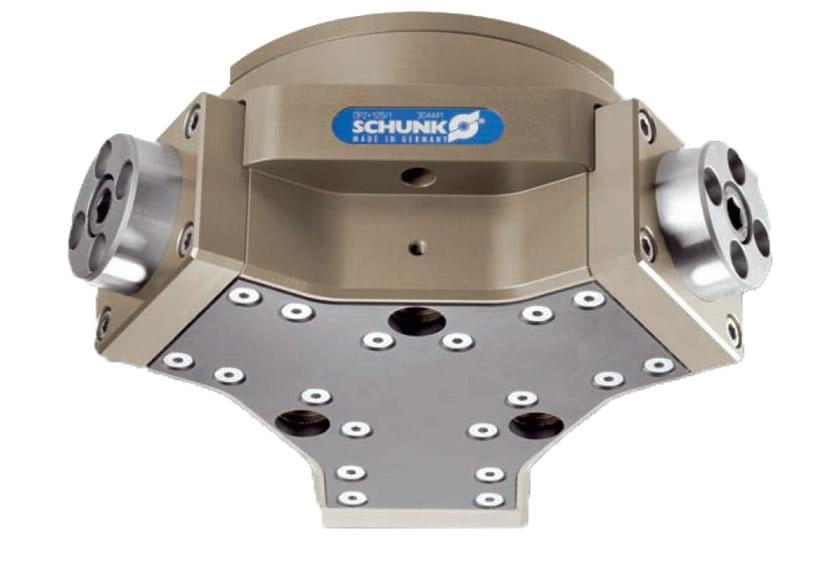

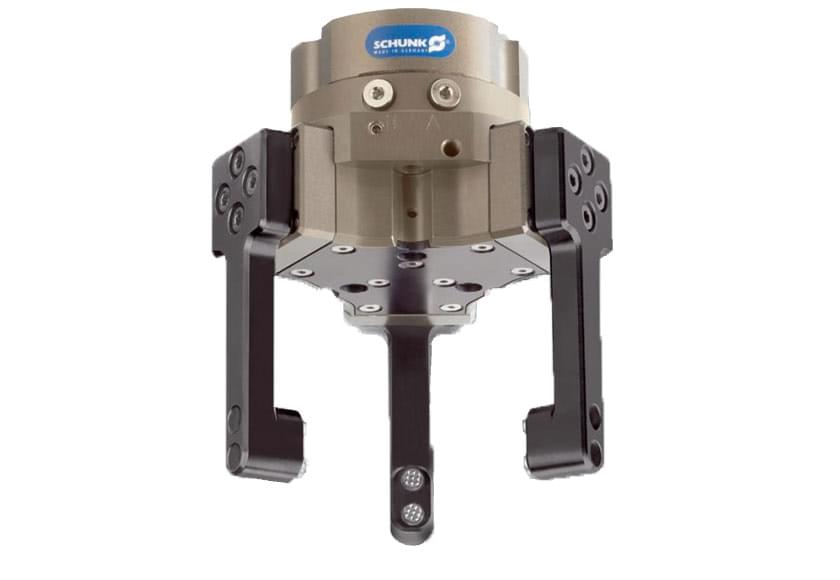

Despite the high moment-bearing capacity of the base jaws, this sealed 3-finger centric gripper satisfies the requirements of IP67 and does not permit any substances from the working environment to penetrate the interior of the component.
The DPZ-plus is ideally suited for the handling of rough or dirty work-pieces. Its area of application extends from the loading and unloading of machines, such as in the case of sanitary blocks, grinding machines, lathes or milling machines, to handling tasks in painting plants, in powder-processing and underwater.
The piston is moved up or down by means of compressed air. Through its angled active surfaces, the wedge hook transforms this motion into the centric, synchronous gripping movement of the three base jaws.
An additional hose for ventilation or purging the air is essential for the gripper, i.e. it requires three hoses in total. See the assembly and operating manual for more detailed information. An increased grip force version is available when higher gripping forces are required.
Advantages and benefits
- Robust interior multiple-tooth guidance for the precise handling of all kinds of workpieces
- Wiper seal on the outer circular guide for permanent, secure gripper sealing
- High moment capabilities suitable for the use of long gripper fingers
- Sealed 3-finger centric gripper complies to IP67 requirements despite a high moment-bearing capacity
- Mounted on two sides in three mounting directions for universal and flexible gripper assembly
- Maximum gripping forces despite a compact design for a varied range of applications
- Air supply via hose-free direct connection or screw connections for the flexible supply of compressed air in all automation systems
- Compact dimensions for minimal interfering contours in handling
