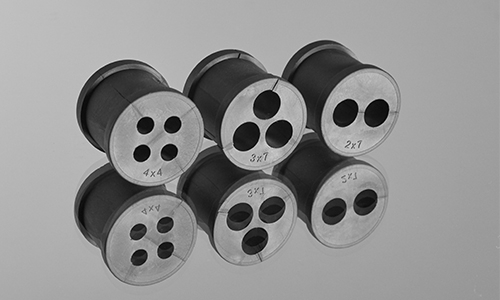

16 New bushings for the KADL cable entry system
Even more flexibility!
The modular cable entry system KADL from Jacob is now supplemented by 16 new bushings. This accessory allows the insertion of several separate cables or the AS-i bus. Overall, a much larger number of cables can be installed in KADL frames.
Thanks to the split bushings, it is possible to insert pre-assembled cables with connectors into the application.
Jacob level sensors
for continuous measuring
Level sensors
Material: PVC, PP, PTFE, Stainless steel, brass
Process connection: G3/8" to G2", Flange (round and oval), others on request
Electr. Connection: PVC- and Silicone-cable, M8- and M12-connector, Alu- and ABS-enclosure
Resolution: Grid: 5 or 10 mm
Overall length: to 3.000 mm
Temperature range: -40°C to +90°C
Pressure: max. 20bar
Protection grade: to IP65
Options: integrated RTD, temperature switch or transducer on request
Optical sensors
Material: Polysulfone, Stainless steel
Process connection: M12, G3/8", G1/2", NPT
Electr. Connection: PVC-cable, M12-connector
Function: NO in Air, NC in Air
Output: PNP, NPN open collector
Temperature range: to +125°C
Pressure: to 60bar
Protection grade: to IP67
