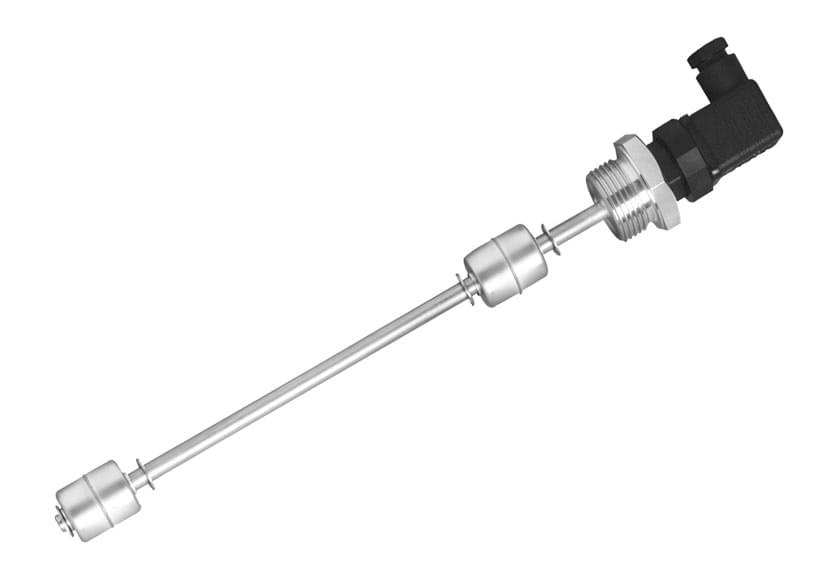

Level indication – Standard float switches
- four standard versions
- switching voltage max. 48/ 230 V
- switching current max. 0,5/ 1 A
- switching power 10/ 50 W/VA
- protection class IP 67
- log nut optional
- cable PVC, 1 m ± 30 mm, 0,25 mm2
- mounting form vertical ± 30°
- contact form N/O, N/C, C/O
- available materials PVC, PP, PA
- temperature range -25…+100°C (PVC -10…+65°C)
