Jacob magnetic sensors & switches

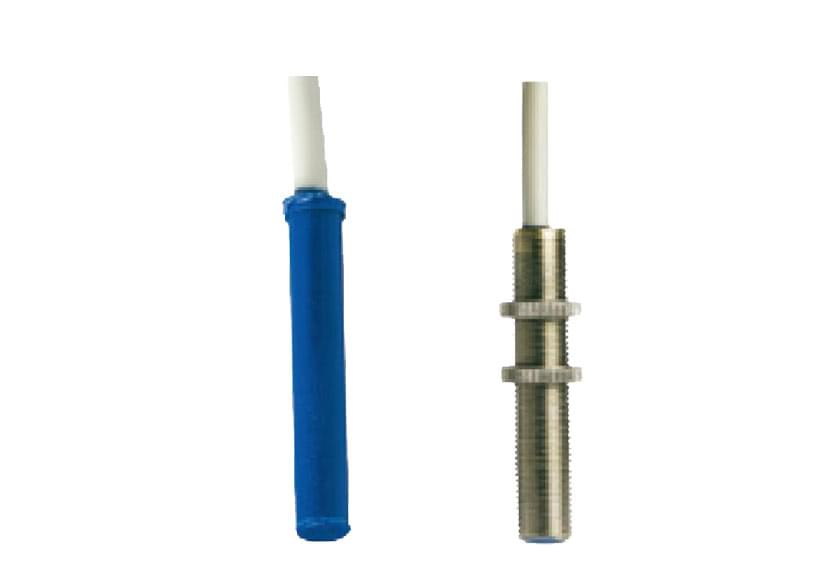

Magnetic Switches: PA, Stainless steel, brass, nickel plated brass
Case: Ø 6, 8 and 12 mm, threads M8, M10, M12, PG7
Electr. Connection: PVC- and Silicone-cable, M8- and M12-connector
Contacts: max. 1 NO or NC, change over
Overall length: 30 to 100 mm, on request: above 100 mm
Temperature range: -40°C to +150°C
Protection grade: to IP65
Options: bistable

Magnetic Switches: PA, Aluminium
Case: 35x13 mm to 80x35 mm
Electr. Connection: PVC- and Silicone-cable, M8- and M12-connector
Contacts: max. 2 NO or NC, change over
Temperature range: -40°C to +150°C
Protection grade: to IP65
Options: bistable

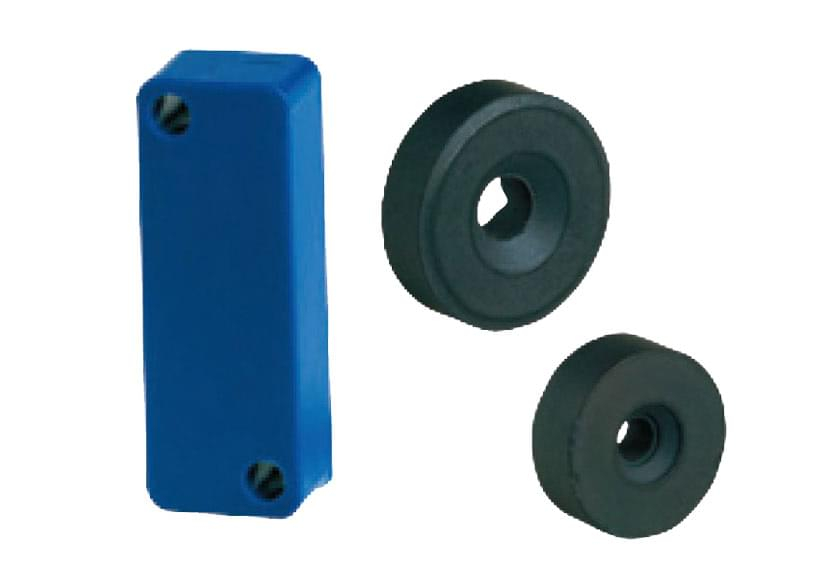

Permanent Magnets
Case: available in all cases as for magnetic switches
Characteristic: axial or radial, aligned to reed contacts
Options: Permanent magnets also available without case
