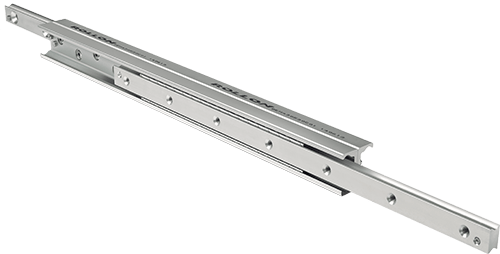

7 different rows of telescopic linear guides with hardened tracks for high load capacity. The fixed intermediate links of the telescopic rail are designed in the shape of S, as a double T or as a square. All series of telescopic guides offer high loads with minimal deflection and no backlash, smooth operation even under maximum load. Mounting holes are made in standard pitches.

• Long service life - Thanks to induction-hardened tracks.
• High load capacity - Up to 3,800 kg per pair of telescopic extensions.
• Different types of extension - Partial and full extension are available up to 150% of the cable length in the locked/latched position
• Safety variants - TelescopicRail guidance offers a whole range of: locking systems, damping systems
• Rack and pinion synchronization available
• Low deflection thanks to robust profiles
• Wide range of anti-corrosion surface treatments


Telescopic guides for partial, full and extended extension are available in steel, aluminum and stainless steel.
Extremely robust profiles allow the extension of heavy loads with minimal deflection up to 200% of the line length in the locked/detented position.

• Safety options - HegraRail management offers a whole range of: locking systems, damping systems
• Low deflection - Extremely robust profiles allow heavy loads to be pulled out with minimal deflection up to 200% of the cable length in the locked/detented position.
• Lightweight construction - Several lines of HegraRail telescopic guidance are available in lightweight aluminum construction
• High load capacity - Up to 2,000 kg per pair of telescopic extensions.
• Extended extension by up to 200%
• Anti-corrosion treatment

It will enrich the automated operation. Telescopic guides with ball bearings.

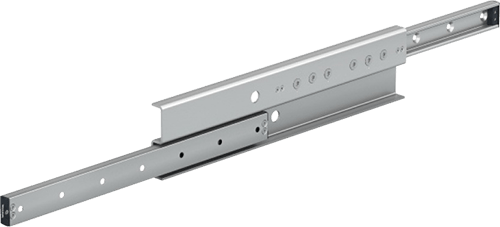

Thanks to its bearings, the Telerace guide is the best choice for tasks with variable lift or vertical movement.

• High load capacity - Thanks to two rows of bearings on the TLR and TLQ models.
• Anti-corrosion treatment - TLAX and TQAX lines are made entirely of stainless steel and offer an optional, electro-polished finish for the most advanced applications.
• Suitable for vertical and variable lifts - Thanks to ball bearings.
• Optimum reliability in dirty environments - Ideal for harsh environments, as it is highly resistant to dust and dirt thanks to large rolling parts.

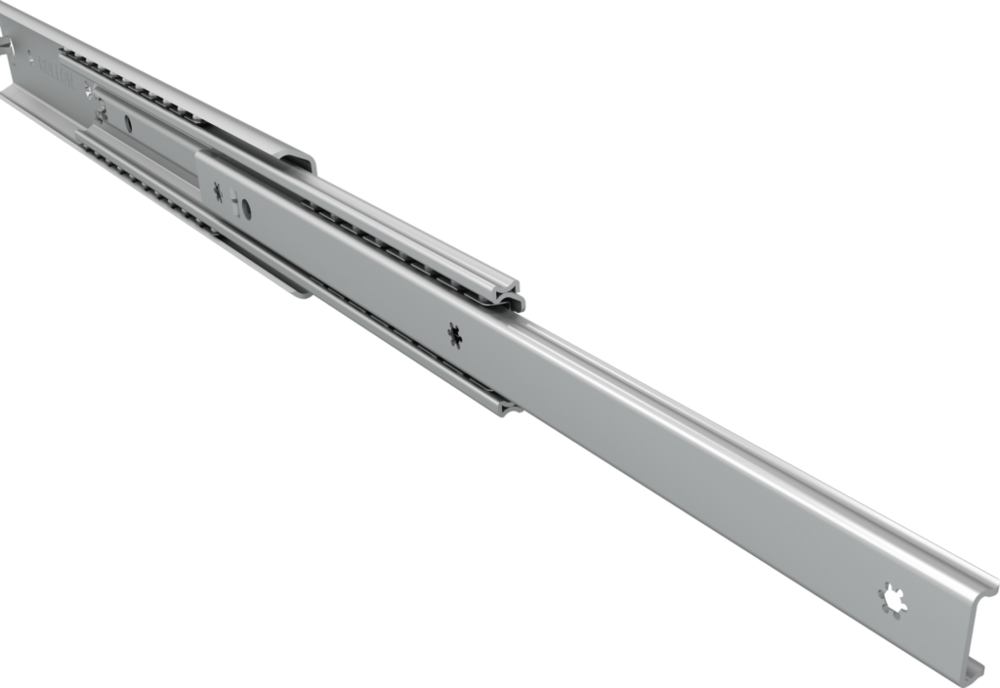

Linear telescopic guides of light construction with full or partial extension. Ideal for applications where the weight of the line is as important as the bending stiffness.

• Good stiffness in a light design - This telescopic guide with full and partial extension is characterized by good stiffness even when fully extended.
• Space saving - LightRail is an ideal solution for medium and light drawers.
• Quiet operation - Shock absorbers guarantee smooth and quiet operation even under heavy loads and prevent permanent deformation in the event of impacts.
