Thomson T60 precision range linear actuator

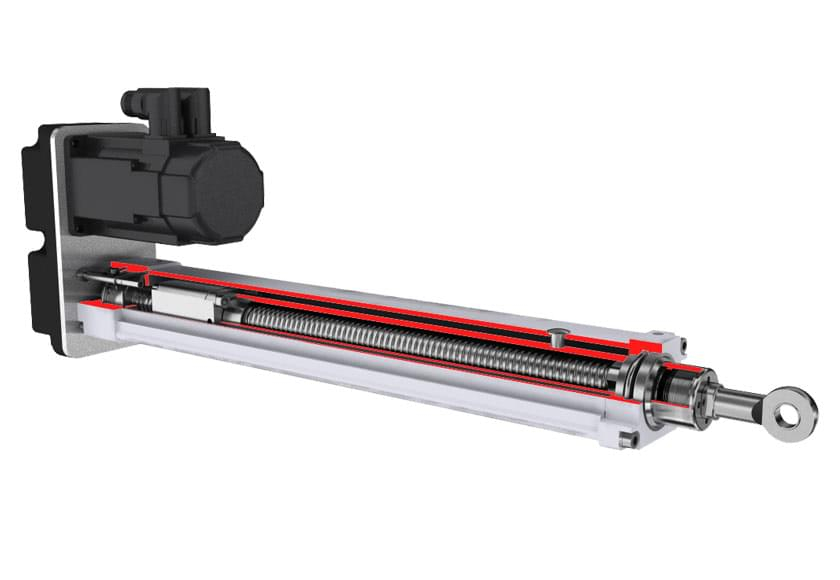

Thomson T60 Precision Range Linear Actuator The T60 is a compact and powerful push-rod style actuator. The unit is designed for harsh environments. The T60 is based on the same successful design of larger T130 and T90 Precision Linear Actuator (PLA) models from Thomson. The Thomson T60 is available in the market with a choice of 25mm diameter precision ball screws with leads of 50mm, 25mm, 10mm and 5mm repeatability. Its maximum input speed of 3000rpm allows comprehensive choice of motor technologies from speed controlled stepper motors, DC motors or full positioning servo motors.

• speeds to 300mm/sec
• selectable travel up to 1500mm
• direct force to 1000N
• IP65 rate
• acceleration to 8m/sec2
• 38mm diameter hard chromed steel extension tube and 75mm x 60mm profile housing
• pre-loaded single nut arrangement for backlash.
