Thomson Electrak XD
The Thomson Electrak XD electric linear actuator, which combines intelligent control with load handling up to 25 kN and a maximum duty cycle of up to 100%.
Main advantages of Electrak XD:
- Hydraulic replacement: Electrak XD is designed to replace hydraulic systems. Conversion is easy with features such as an internal load-holding brake, optional shock absorption, manual control, continuous monitoring and diagnostics, and reduced overall weight, size and power consumption.
- Weatherproof: XD offers excellent protection against even the harshest conditions and ingress with IP69K (static), IP67 (static) and IP66 (dynamic) ratings.
- Enhanced controllability: Increase the intelligence of your application with integrated controls such as low-level switching, programmable limit switches, position feedback, bus systems and more.
The Electrak XD (24/48 VDC) represents a new level of load handling capability, handling dynamic loads up to 25 kN. A duty cycle of up to 100%, strokes of up to 1200 mm and speeds of up to 75 mm/s emphasize its performance.
The Electrak XD (24/48 V DC) represents a new level of load handling capability, handling dynamic loads up to 25 kN. A duty cycle of up to 100%, strokes of up to 1200 mm and speeds of up to 75 mm/s highlight its performance.
The next evolution of electric drives is here with the new Electrak® XD
Meet the Thomson Electrak® XD electric linear actuator. It is strong enough to take on new hydraulic applications while being smarter, smaller and more efficient than competing technologies. This model represents a new level of load handling capability, handling loads up to 25,000 N. Duty cycle up to 100%, strokes up to 1200 mm and speeds up to 75 mm/s highlight its performance. How can XD change your next design project?
Key features of the Electrak XD:
- Dynamic/static load up to 25000/32000 N
- Lift up to 1200 mm
- Speed up to 75 mm/s
- Duty cycle up to 100% depending on load conditions
- Lifetime of up to 275,000 cycles
- Internal brake holding the load
- Optional shock load damping
- Manual control in case of power failure
- Constant monitoring and diagnostics
- On-board electronics
- IP69K (static), IP67 (static) and IP66 (dynamic)
- Low level switching
- Bus systems (CANopen® or SAE J1939)
Main advantages of Electrak XD Option:
- LXX = low signal motor switching
- LXP = low signal motor switching + position feedback output
- LXF = low signal motor switching + force feedback output
- LLX = low signal motor switching + end of stroke indication outputs
- LLP = low signal motor switching + position feedback + end of stroke indication outputs
- PLS = low signal motor switching + programmable end of stroke limits
- COO = CANOpen + closed-loop speed control (includes diagnostics, position feedback, overload indication plus static and dynamic force feedback)
- CNO = CANbus J1939 + closed-loop speed control (includes diagnostics, position feedback, overload indication plus static and dynamic force feedback)

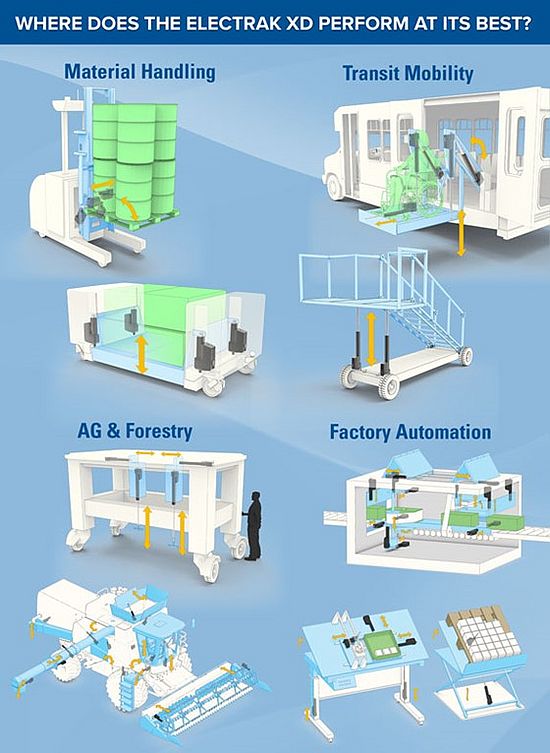

Electrak XD applications:
- Automatically driven vehicles
- Logistics trains
- Access stairs/working platforms

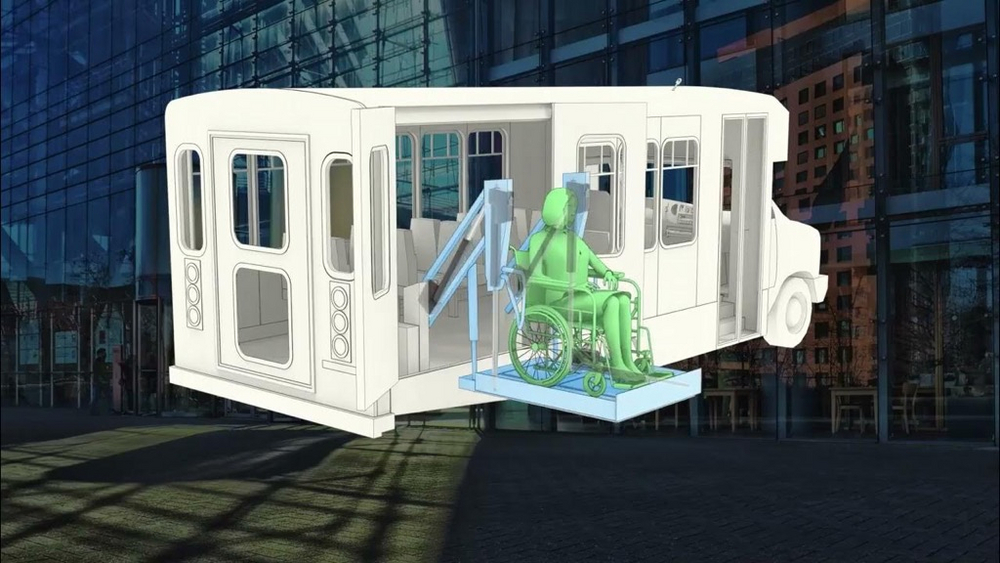

- Lifting carts/handicap aids
- Agricultural vehicles
- General automation
- Assembly lines and workstations
Watch our video on the new Electrak XD, which represents the next evolution of electric linear actuators. In just three minutes, the video includes:
- Features and benefits that make the XD such a success (loads up to 25,000 N, duty cycle up to 100% and more).
- New innovations that make the XD ideal for an electric conversion, including integrated force feedback, manual brake release and the highest power density in its class.
- Benefits of replacing the entire hydraulic system with XD, such as intelligent controls, trouble-free operation, reduced energy costs and more.
- Customization options, including finishes, supply voltages and stroke lengths.
- Ideal for applications such as AGVs, work platforms, harvesters and manufacturing automation machines.
