Manipulators for lifting, rotating and tilting rolls

BArtholomy

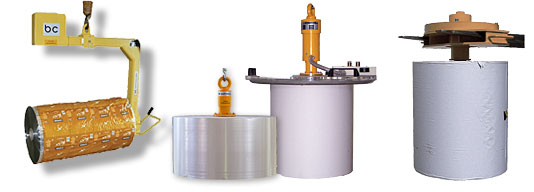

Manipulators for lifting rolls

Type RH

RH
  • Standard roll weight 1000, 2000 kg, maximum roll weight 4000 kg
  • For inner diameter tubes:
  • Standard size range 70, 76.2, 150 and 152.4 mm
  • Special design from 30mm to 650mm, other dimensions on request
  • Manual roll clamping / unclamping

Type RHK

RHK
  • Combined adapter for multiple cavity sizes
  • Standard roll weight: 1000, 2000 kg, maximum roll weight 4000 kg
  • For inner diameter tubes:
  • Standard size range 70, 76.2, 150 and 152.4 mm
  • Special design from 30 mm to 650 mm, other dimensions on request
  • Manual roll clamping / unclamping

Type AL

  • Standard roll weight: 1000, 2000 kg, maximum roll weight 4000 kg
  • For inner diameter tubes:
  • Standard size range 70, 76.2, 150 and 152.4 mm
  • Special design from 30 mm to 650 mm, other dimensions on request
  • Automatic roll clamping / release

Type ALK

  • Combined adapter for multiple cavity sizes
  • Standard roll weight: 1000, 2000 kg, maximum roll weight 4000 kg
  • For inner diameter tubes:
  • Standard size range 70, 76.2, 150 and 152.4 mm
  • Special design from 30 mm to 650 mm, other dimensions on request
  • Automatic roll clamping / release

Manipulators for rotating rollers

Type GW

GW
  • Purely mechanical equipment, without the need to supply electricity, compressed air or hydraulic oil
  • Rotation due to the common center of gravity of the manipulator and the roller
  • Maximum roll weight 500 kg
  • Maximum roll diameter 1,500 mm
  • Maximum roll width 650 mm
  • For inner diameter tubes:
  • Standard size range 70, 76.2, 150 and 152.4 mm
  • Special design from 30 mm to 650 mm
  • Manual roll clamping / unclamping

SW type

SW
  • Purely mechanical equipment, without the need to supply electricity, compressed air or hydraulic oil
  • Rotation due to the common center of gravity of the manipulator and the roller
  • Maximum roll weight 800 kg
  • Maximum roll diameter 1,200 mm
  • Maximum roll width 1,200 mm
  • For inner diameter tubes:
  • Standard size range 70, 76.2, 150 and 152.4mm
  • Special design from 30 mm to 650 mm
  • Manual roll clamping / unclamping

Type BW

BW
  • Electromechanically driven
  • Controlled by remote control
  • Maximum roll weight 5000kg
  • Maximum roll diameter 2500mm
  • Maximum roll width 2500mm
  • For inner diameter tubes:
  • Standard size range 70, 76.2, 150 and 152.4 mm
  • Special design from 30 mm to 650 mm

Roll tilt manipulators

RK type

RK
  • Maximum roll weight 30,000 kg
  • Safety system to protect the operator
  • Two-button operation
  • Easy loading and unloading of rolls using a pallet or forklift
