For rack and pinion drives, planetary gearboxes with a factory-fitted pinion are the ideal drive solution. Neugart is now presenting a particularly economical model with this option and is also refining the corresponding range.

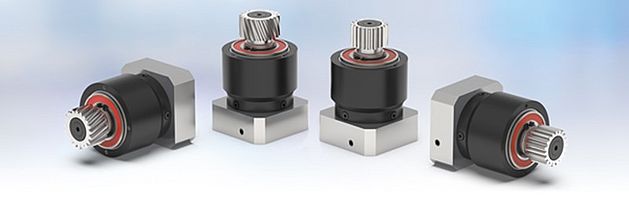

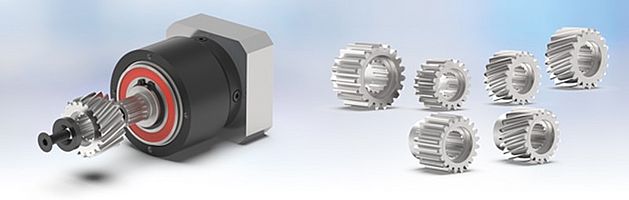

With the current additions, this now includes 59 different pinions for ten gearbox series. This means you can choose between even more possible pinion and gear combinations!  For the first time, Neugart is also offering the PLPE Economy planetary gearbox with factory-fitted pinion. This provides a particularly economical alternative for selection. The PLPE offers high performance at the price of an economy gearbox: its reinforced deep groove ball bearings mounted on the output side are designed for higher radial and axial forces than the PLE gearbox. The PLPE with pinion is available in four frame sizes 070, 090, 120 and 155.  The expansion of the range also includes the PK1 series of pinions. These pinions are mounted on the gearbox pinion for splined output shafts. Toothing to DIN 5480 ensures the necessary connection reliability.As always, the extended range with pre-assembled pinion is also available from batch size 1 and is of course integrated in the Neugart software tools Neugart Calculation Program (NCP) and Tec Data Finder (TDF).
