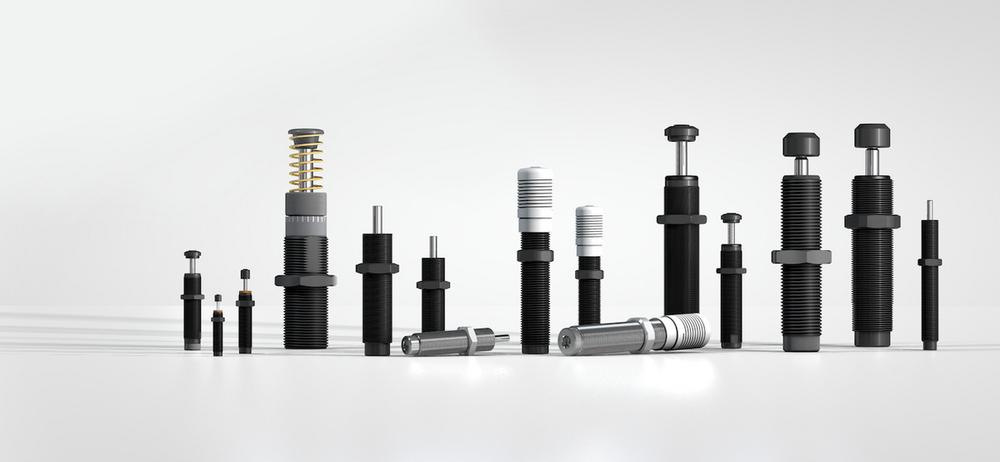

ACE miniature shock absorbers are quality products, proven worldwide in millions of industrial constructions. They optimize machines in a reliable and efficient way, using fast and harmless braking of materials.

• Lightweight, cost-effective construction
• Great variety of models for all purposes
• Less machine load
• Reduction of operating costs
• Maintenance free

MC5 to MC75
Self-compensating, Energy absorption 0.68 Nm / stroke up to 9 Nm / stroke, Stroke 4 mm to 10 mm

MC150 to MC600
Self-compensating, rolling diaphragm technology, Energy absorption 20 Nm / stroke up to 136 Nm / stroke, Stroke 12 mm to 25 mm

MC150-V4A to MC600-V4A
Self-compensating, stainless steel, rolling diaphragm technology, Energy absorption 20 Nm / stroke up to 136 Nm / stroke, Stroke 12 mm to 25 mm

PMCN150 to PMCN600
Self-compensating, membrane technology, TPU bellows, Energy absorption 20 Nm / stroke up to 136 Nm / stroke, Stroke 12 mm to 25 mm

PMCN150-V4A to PMCN600-V4A
Optimal corrosion protection, Self-compensating, membrane technology, TPU bellows, Energy absorption 20 Nm / stroke up to 136 Nm / stroke, Stroke 12 mm to 25 mm

SC190 to SC925
Long strokes and soft impact, Self-compensating, progressive (Soft-Contact), Energy absorption 25 Nm / stroke up to 110 Nm / stroke, Stroke 16 mm to 40 mm

SC²25 to SC²190
Hollow piston design for very high energy absorption, Self-compensating, tubular piston system, Energy absorption 10 Nm / stroke to 31 Nm / stroke, Stroke 8 mm to 12 mm

SC²300 to SC²650
Hollow piston design for very high energy absorption, Self-compensating, tubular piston system, Energy absorption 73 Nm / stroke up to 210 Nm / stroke, Stroke 15 mm to 23 mm

MA30 to MA900
Adjustable, Energy absorption 3.5 Nm / stroke up to 100 Nm / stroke, Stroke 8 mm to 40 mm
