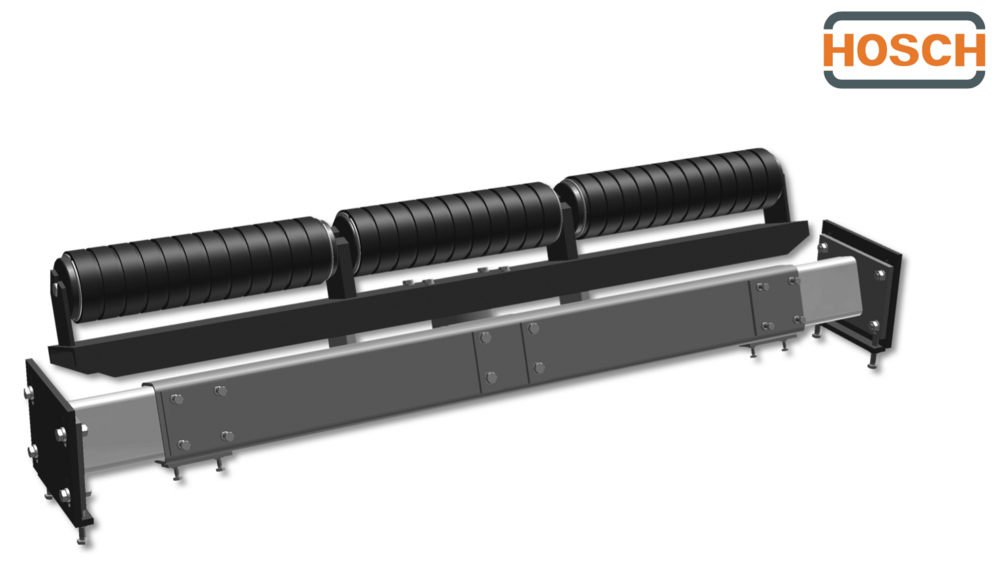

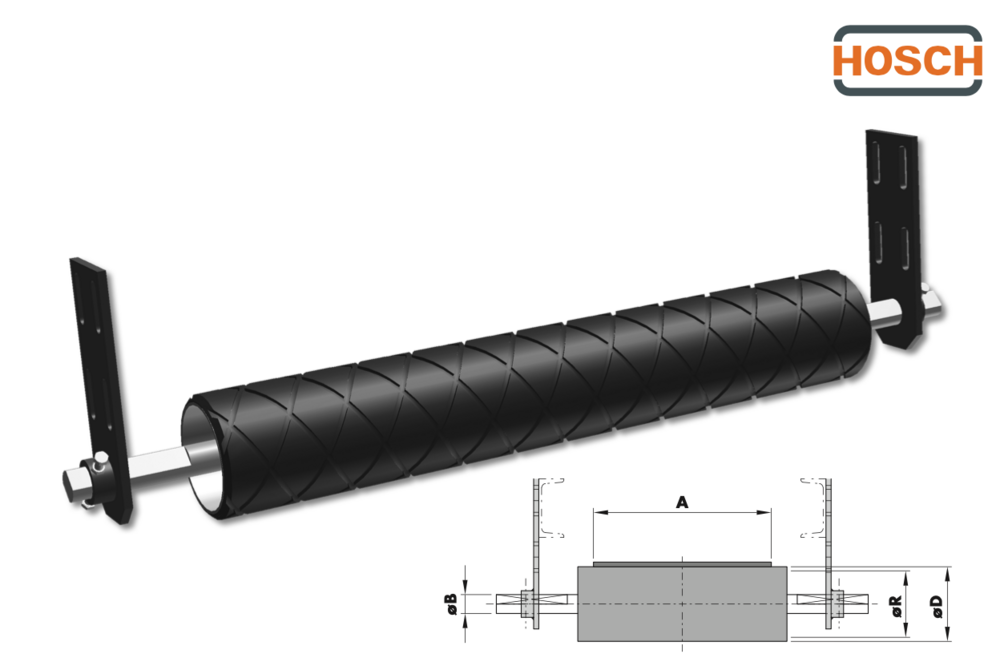

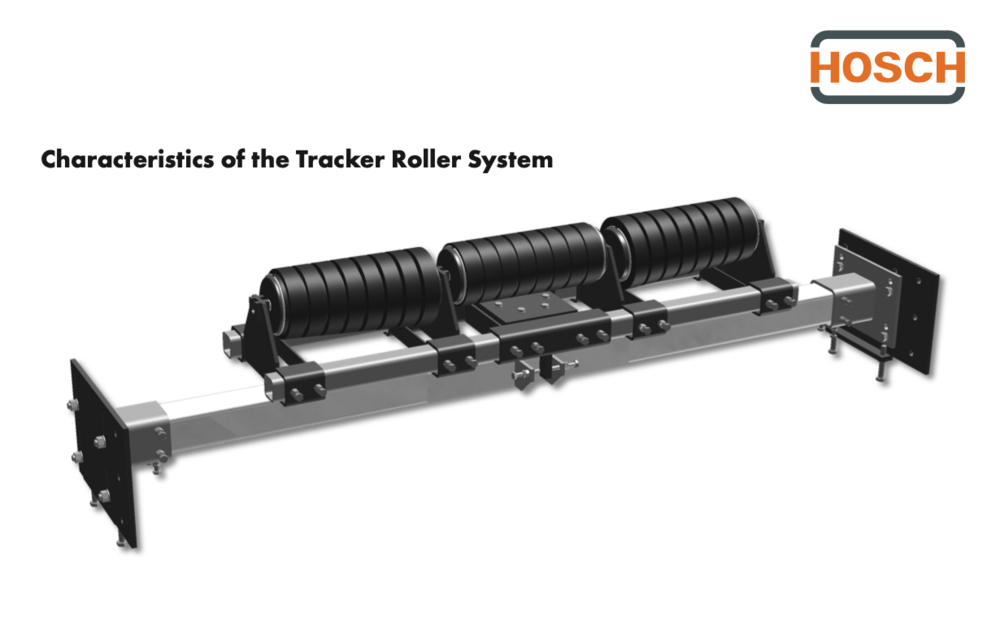

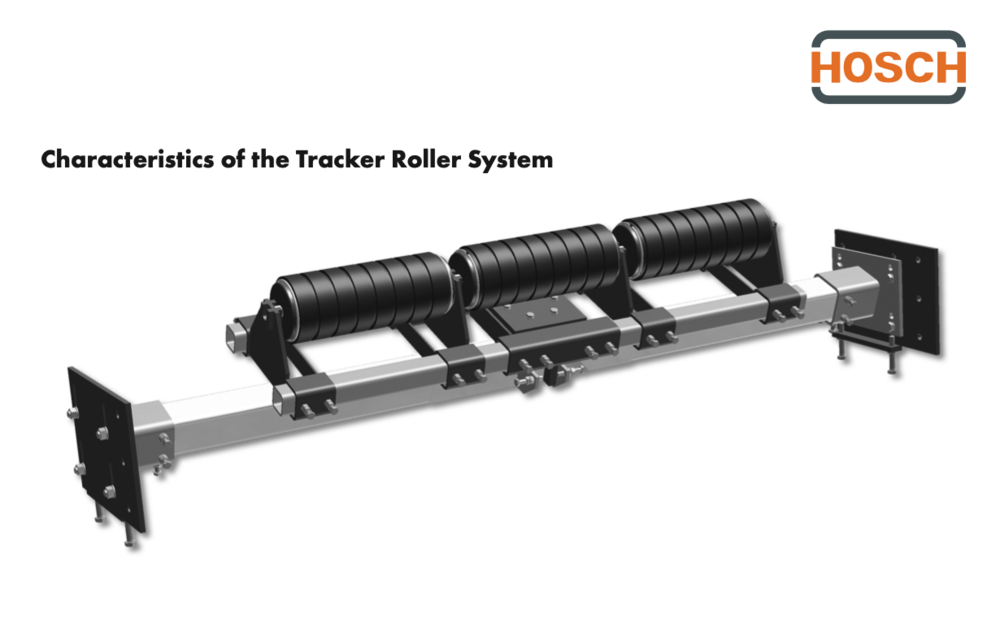

HOSCH roller systems type R / RG / RC / RRC
There are many reasons for belt alignment in belt conveyor systems.

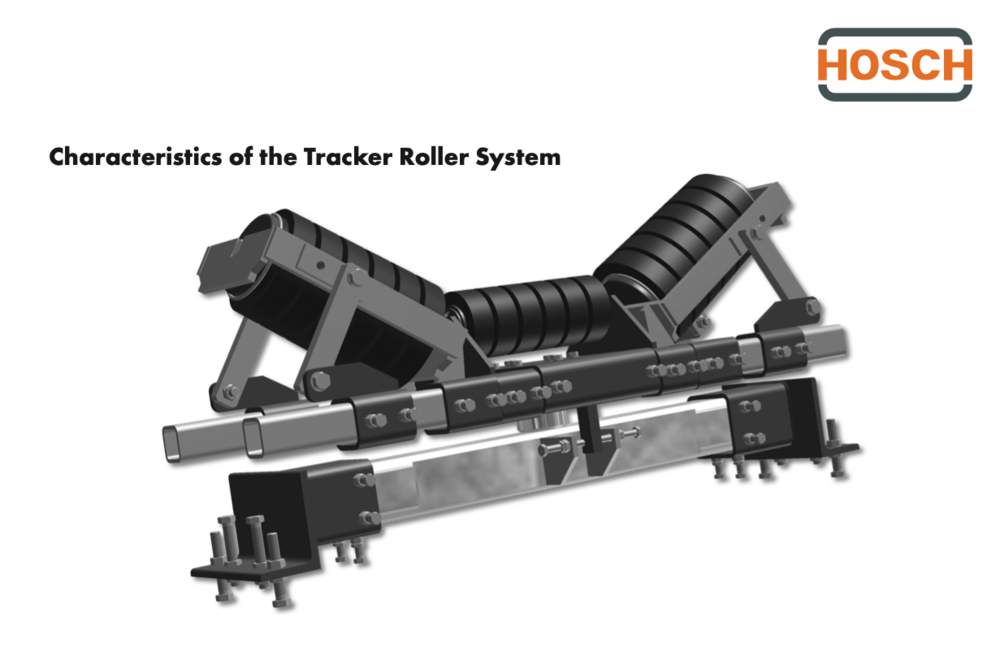

This problem often leads to complete shutdown of the equipment or damage to the conveyor belt and other components. HOSCH offers a wide range of roller leveling systems for all belt widths and belt speeds up to 6 m / s, for the return belt as well as for the trough bearing side of the conveyor belt.
| Data type | R1 / RG1 | RR1 / RRG1 |
| Belt width (mm) | 400 - 1 000 (R1) 1 000 - 1 600 (RG1) | 400 - 1 000 (RR1) 1 000 - 1 600 (RRG1) |
| Belt speed (m / s) | max. 3.5 | max. 3.5 |
| Reversible operation | √ |
| Data type | RG2 | RC2 / RC3 | RRC2 / RRC3 |
| Belt width (mm) | 1 200 - 2 400 | 1 200 - 1 600 (RC2) 1 800 - 2 400 (RC3) | 1 200 - 1 600 (RRC2) 1 800 - 2 400 (RRC3) |
| Belt speed (m / s) | max. 6.0 | max. 6.0 | max. 6.0 |
| Reversible operation | √ |
| Data type | RRC2-v / RRC3-v |
| Belt width (mm) | 800 - 1 400 (RRC2-v) 1 000 - 1 600 (RRC3-v) |
| Belt speed (m / s) | max. 6.0 |
| Reversible operation | √ |
