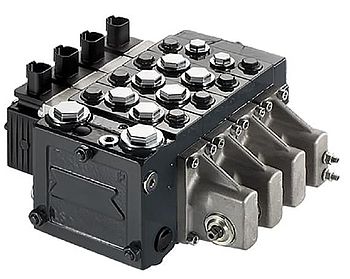

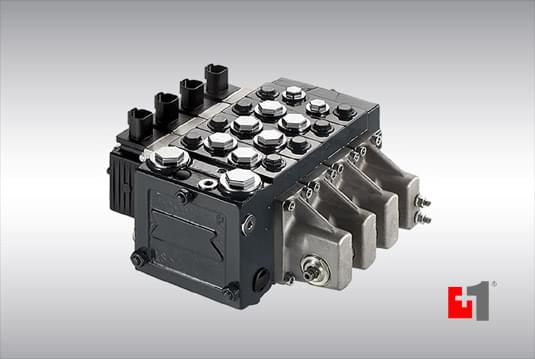

Danfoss PVG16

Danfoss  PVG is a hydraulic, load-sensing proportional valve, designed for optimal machine performance and maximum design flexibility. The PVG valve design is based on a modular concept that enables machine
designers to specify a valve solution suitable for multiple market segments across multiple applications.

The PVG 16 is a member of the PVG product platform. PVG 16 controls work port flow up to 65 l/min and up to 420 bar work port pressure.

The load independent proportional control valve and high performance actuator technology combined with a low pressure drop design improves the machine performance and efficiency – increasing productivity and reducing energy consumption.

The properties of PVG16 can be summarized in several points:

• maximum flow at the inlet to the switchgear 140 l / min, resp. 230 l / min with the center input section used
• simple combination with PVG32 proportional switchgear
• possibility to combine with all distributors of the PVG group
• Generally, a proportional switchboard can be created up to 12 work sections
• flow independent flow
• reliable and accurate flow control over the entire regulatory range
• LS shut-off valves help reduce power losses when reaching the required pressure
• multiple thread connections and flange connections
• compact design, easy installation and serviceability
