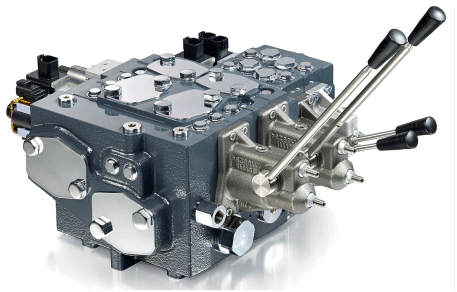

DANFOSS PVG128/256

Danfoss has added new PVG128 and PVG256 switchgears to its portfolio of proportional switchgear PVGs.
PVG128 / 256 are proportional LS (load sensing) switchgear to large flow. The maximum PVG128 / 256 input flow rate is 1200 l / min and the maximum flow rate through the single section is 300 l / min for PVG128 and 400 l / min for PVG256 or PVG126 respectively. 500 l / min for the special Turbo version of the PVG256 section.
Large flow distributors are ideal for use in demanding applications such as large mobile, track, crane, winches, drills, etc.
The use of PVG128 / 256 distributors together with other distributors from the PVG distributor family allows machine manufacturers to increase machine performance while improving their productivity and reducing power consumption.
The switchboards are designed to be easily integrated with the existing portfolio of Danfoss PVG proportional distributors. This allows for modularity from small to large flows within one proportional switchgear.

Benefits of PVG128 / 256 distributors for manufacturers and machines

• The modular design provides a wide range of possible combinations
• Flow independent of load
• Reliable and accurate flow control over the entire regulatory range
• LS technology for greater efficiency, safety, reduced power consumption and longer service life
• Easy connection to other Danfoss PVG proportional distributors

Features PVG128 / 256

• Maximum flow at the inlet to the distributor 1200 l / min
• Maximum workflow rate 500 l / min
• the ability to create different combinations:
  • Type of sliders - Y center, Z-center, flow control, floating position, three-way, four-way
  • flow ranges - 65; 95; 130; 180; 240; 320; 400, 500 l / min
  • about modes of operation - manual, hydraulic, electric On / Off, electric proportional; CAN
  • Pressure protection on the load side - shock valves with different settings
  • LS release valves - help reduce power losses when the required pressure is reached
• Several options for connecting threads and flange connections
• Compact design, easy installation and serviceability
