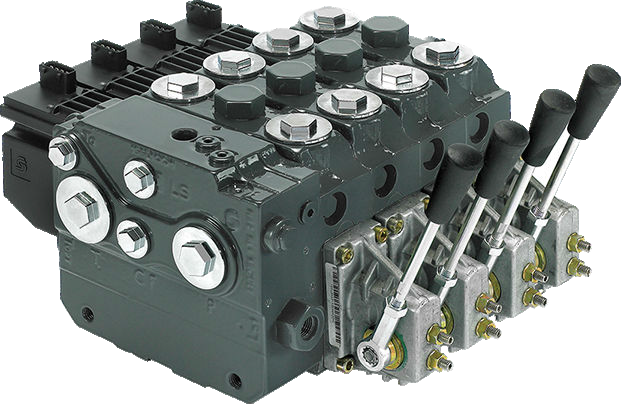

DANFOSS - Proportional switchboard PVG100

PVG 100 is a proportional distributor from the family of proven LS (load sense) proportional distributors Danfoss PVG. It provides proportional control of the working section flow up to 240 l / min with a working pressure of up to 350 bar. It offers even flow sharing between sections for simultaneous precise control of multiple machine functions under different load conditions.
PVG 100 optimizes machine design - providing a more efficient hydraulic system that maximizes performance and saves energy. Typical applications include backhoe loaders, telescopic loaders, wheel loaders, forklifts and forestry machines.

Features and benefits:

• Flow sharing for maximum machine control and safety. All sections continue to operate regardless of load differences and delivered hydrogenerator flow.
• Load-independent proportional flow control for smooth running and increased productivity.
• LS (load sense) technology for higher efficiency, safety, reduced fuel consumption and longer system life.
• Configurable as an electronically controlled proportional valve, or as a simple manually or hydraulically operated LS proportional valve.
• Modular design provides a wide range of possible combinations.
• Up to eight sections for one switchboard with a maximum flow rate of 240 l / min per section.
• Can be configured in combination with Danfoss PVG32 proportional valves or HIC cartridge modules.
• Possibility of mechanical, hydraulic, electrical or electronic control.
