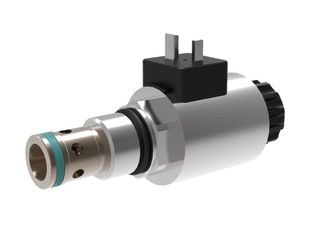

SD3E-C2 - 2/2 built-in electric switchgear

The SD3E-C2 is a two-position, two-way, two-stage built-in switchgear with electric control with the following parameters:

• maximum flow rate 150 l / min
• maximum pressure 350 bar
• installation hole - cavity SAE-12 (thread 1 1 / 16-12UN)
• Thanks to the saddle construction and precisely manufactured and hardened key part, there is almost no oil leak
• large volumetric flow due to two-stage construction
• version normally open (NO) or normally closed (NC) in basic position
• Wide selection of emergency controls
• both channels can be fully loaded with maximum pressure
• wide range of supply voltages and coil connection connectors
• interchangeability of coils across the entire SD * -C * range
• standard version with galvanized surface treatment with corrosion resistance of 520 hours in NSS according to ISO 9227

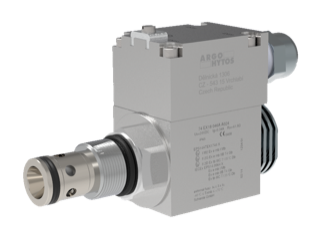

• also in explosive atmospheres according to ATEX / IECEx Directive 2014/34 / EU, which applies to mines and environments with explosion hazard of flammable gases and flammable dusts
