ARGO - HYTOS: Proportional valve with unique performance

Argo Hytos
Argo Hytos

Today, customers demand more than just standard product features. High demands are placed especially on mobile applications designed to work in demanding conditions in construction and agriculture.
Modern work machines are not only expected to have excellent - more precisely controlled performance, but also high energy efficiency and a compact design.

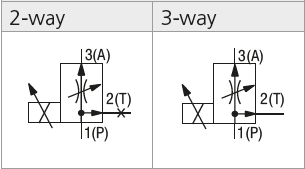

Argo-Hytos proportional valve for flow control SF32P-C3 with unique performance, with the possibility of two-way and three-way function.

  • standardized chamber size (C-12-3) 1.1 / 16-12 UN (Size 12)
  • Input, regulated flow Qmax 100 & 60 l / min (26 & 16 GPM)
  • Operating pressure 350 bar (5100 PSI)

Selection of benefits:

  • Excellent stability and low hysteresis over the entire flow range
  • In the basic position, the valve is closed - no electricity consumption
  • Service life 10 Mio @ 350 bar, 1 Mio @ 420 bar - also applies to seals at unchanged output
  • Stable performance even at a reduced rated voltage of 80% Un
  • Interchangeability of DC coil of solenoid C22B for 12 VDC and 24 VDC in the product line PRM2-06 of CETOP design


More information about this product can be found on the ARGO-HYTOS website in the Proportional Technology section.
