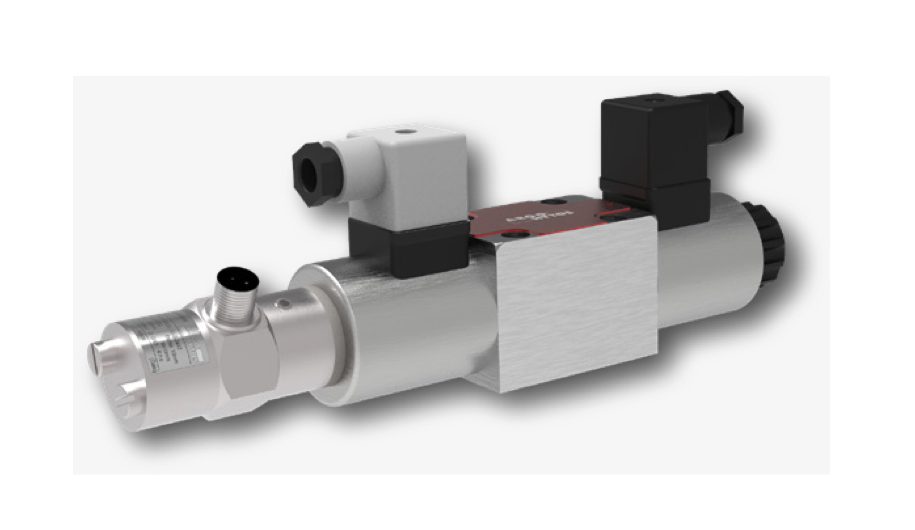

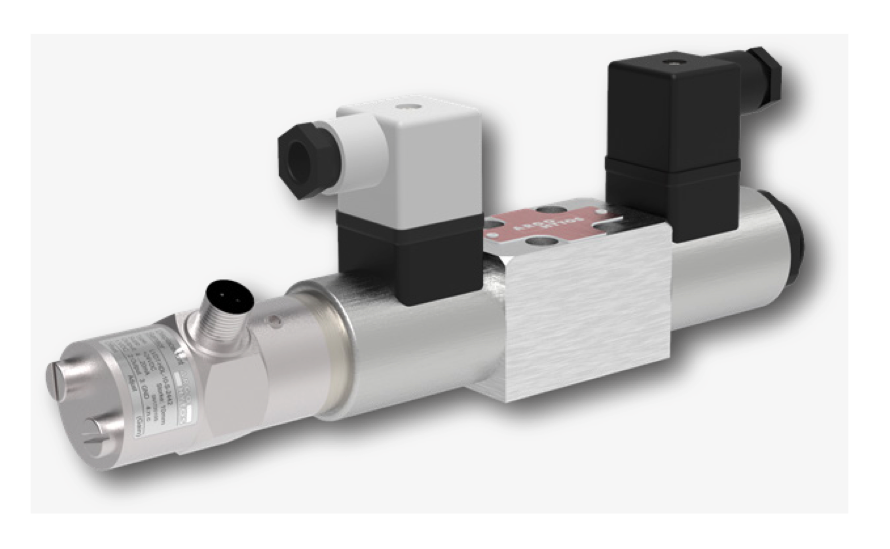

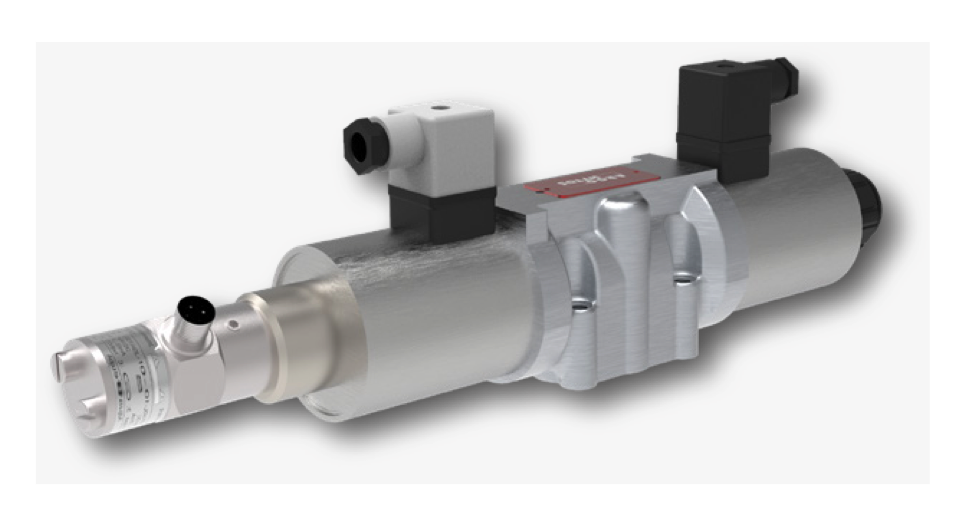

ARGO - HYTOS Product novelty: New PRMF proportional switchboard

Product benefits:

New valve position sensor (LVDT) with high accuracy of 0.5% and MIL M12x1.5 connector
Valve control via external or integrated electronic control unit in the form of a connector plug (ECU)
Manual emergency control of the valve valve
Shutter position sensor
Optional type of coil electrical connection connector without integrated ECU
Adjustable connector position suitable for mounting by turning the coil after loosening the fastening nut
In the basic version, the valve body is phosphated. Steel parts are galvanized with a corrosion resistance of 240 h in NSS according to ISO 9227
Optional increased surface protection of the valve against corrosion by galvanizing with corrosion resistance 520 h in NSS according to ISO 9227
Wide range of available valves, connector types and manual controls

Technical parameters:

• Rated voltage 24 V DC
• Limit current 1.1 A
• Operating temperatures -30… + 80 ° C
• The valve is designed to control the direction of movement of the appliance and continuous speed control in a given range
• Available in sizes NG04, NG06, NG10 (CETOP 02/03/05)
• Maximum flow from 20… 80 l / min
• Maximum pressure from 320… 350 bar
