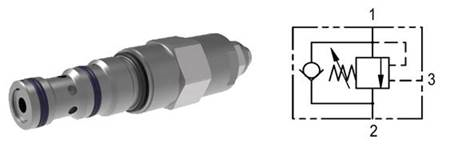

Brake valves size 10/7 / 8-14 UNF

These valves extend the group of brake valves with the UNF chamber.

The 10, 7 / 8-14 UNF valves are designed for 40 l / min flow and 420 bar operating pressure.

Thanks to their design and technical parameters, the new brake valves are able to meet the demanding technical and operational requirements in various applications.

Technical parameters:

  • Robust valve design for highly dynamic applications
  • Exceptional service life of up to 10 million cycles at a nominal pressure of 420 bar also applies to seals
  • Smooth response to pilot pressure input signal
  • Standard and fully compensated valve series using one chamber type
  • Low power consumption by achieving low pressure losses
  • High level of zinc surface protection (520 h in NNS according to ISO 9227)
  • If the valve is located near the appliance, it protects the load against falling if the pipe ruptures
  • The valve setting can be adjusted during operation = leak-free sealing of the actuator
