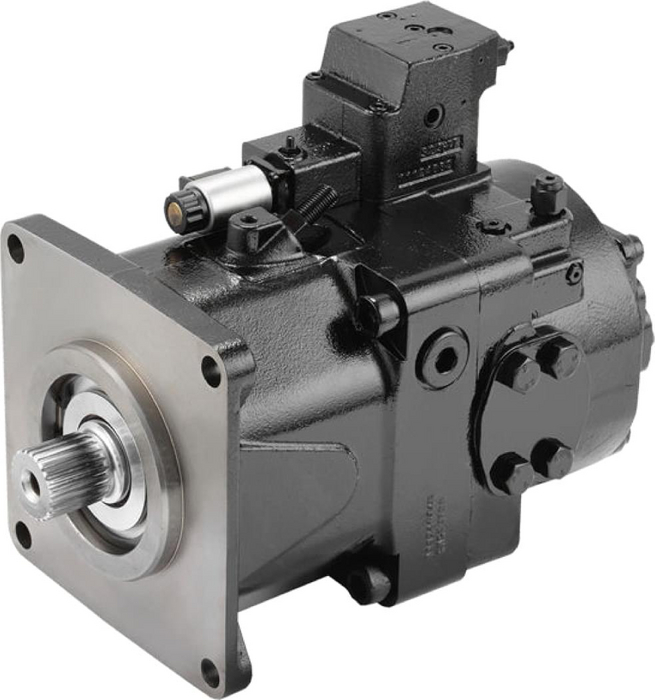

Danfoss D1P-160

danfoss

Danfoss Power Solutions has expanded the portfolio of high-performance axial piston control hydrogenerators into the open circuit of the D1P series with a geometric volume of 160 cm3.
Like the other hydrogenerators of the D1P series, the D1P-160 offers a robust construction and performance for the most demanding applications in mobile and industrial hydraulics.

The hydrogenerator D1P-160 offers high performance at a permanent nominal pressure of 350 bar (short-term 400 bar) and at a flow rate of up to 400 liters per minute. The maximum speed is 2,500 rpm. The built-in dimensions of the D1P-160 are identical to the D1P versions with a geometric volume of 130 and 145 cm

D1 High Power Open Circuit Pumps

D1P is a new generation of regulating axial piston hydrogenerators with an inclined plate into an open circuit. These hydrogenerators are designed to achieve high quality, reliability and efficiency in connection with simple installation into the hydraulic system.
D1P has been developed for the most demanding requirements for open-circuit hydrogenerators in mobile applications - it meets the highest qualification requirements of Danfoss. D1P Hydro Generators are ideal for applications such as concrete and mining, mining, crane and marine applications and others.
D1P are designed for trouble-free cooperation with PVG proportional distributors and PLUS + 1® controllers.

Designed for quality and reliability

  • proven rotation group with 9 pistols
  • drilling sandblasters at an angle improves suction power
  • the ball sliding surface of the valve plate and the cylinder block ensures high speed while maintaining high efficiency

Advanced features

  • the built-in filling pump enables the work of the hydrogenerator at higher revolutions
  • ideal for working with the Danfoss proportional distributors of the PVG series
  • control of the hydrogenerator in accordance with the standard Danfoss PLUS + 1®
  • full torque transmission to auxiliary clamp flange for hydrogenerator - tandem
  • electrical proportional control of geometric volume with the possibility of emergency manual control for diagnostics

Geometric volumes

  • 130 cm3 without filling pump
  • 145 cm3 without filling pump
  • 130 cm3 with filling pump
  • 145 cm3 with filling pump
  • 193 cm3 with filling pump
  • 260 cm3 with filling pump

Management

  • TPE2 / TPE5 - mechanical control for constant torque + constant pressure control + electric proportional control of geometric volume
  • TPSN - mechanical control for constant torque + constant pressure control + load sensing (load sensing)
  • ENSN - Constant torque control + load sensing (load sensing)
  • NPSN - constant pressure control + load sensing (load sensing)
  • NPNN - constant pressure control
  • TPH1 - mechanical control for constant torque + constant pressure control + hydraulic proportional control of geometric volume
  • NNES - electrical proportional geometric volume control + load sensing l
