BLACK BRUIN – X-series
Black Bruin presents a new range of X-series radial piston hydraulic motors for demanding applications. This expands its portfolio of radial piston hydraulic motors with a rotating shaft. The new X-series hydraulic motors meet the market requirements for demanding industrial applications – recycling, pulp and paper production, construction, mining.
The X-series with a patented construction is characterized by a durable construction of pistons and optimized channels for optimal flow of hydraulic fluid while maintaining compact installation dimensions. The result is a hydraulic motor with higher efficiency due to improved hydraulic fluid distribution with lower pressure losses. The design of the pistons enables trouble-free operation of the hydraulic motor in a wide range of viscosity and purity of the hydraulic fluid. This minimizes the risk of damage.
The design of the bearings is suitable for the transmission of extreme axial and radial loads.
In addition, the hydraulic motor is serviceable with easily replaceable and affordable parts, extending maintenance intervals and reducing total operating costs.
Basic parameters of the X–series
- shaft with a nominal diameter of 140 mm (internal splines according to DIN 5480)
- geometric volume 2,512 to 8,800 cm3
- Maximum torque 15,200 to 56,000 Nm
- Maximum power 280 kW
- Maximum pressure 400 bar
- Maximum speed 380 rpm
- Weight 315 to 325 kg
Accessories
- It is mounted with a torque arm
- Safety valves for working branches
- Freewheeling valve
- Speed sensor
BLACK BRUIN - On-Demand Drive
The popularity of hydraulic wheel motors on trailers - tank trucks, balers and many other types of machines working in forestry, agricultural and construction conditions - is still growing in the world. There is also no doubt about the advantages of trailers with driven wheels. These machines offer better traction, improved steering. Trailers with driven wheels even save fuel.

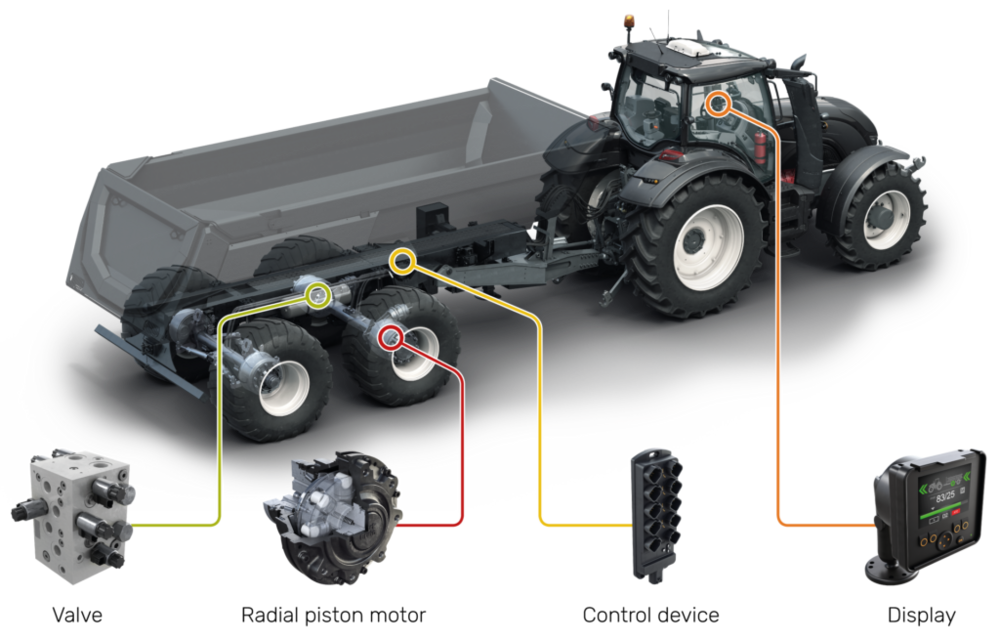

Black Bruin offers a complete assisted drive system covering hydraulic motors, valves and the control system - CTR201 for tractors and implement with ISOBUS and CTR101 for tractors without ISOBUS. Now the offer is expanded by Hill Descent Control (HDC) for both systems.
The HDC function helps to control the vehicle and increases safety when driving down steep slopes. When the system is in operation, the wheel motors act as hydrostatic brakes. Hydrostatic braking relieves the load on the actual service brakes and extends their maintenance interval. The HDC function helps on steep slopes - when shifting forward and backward.

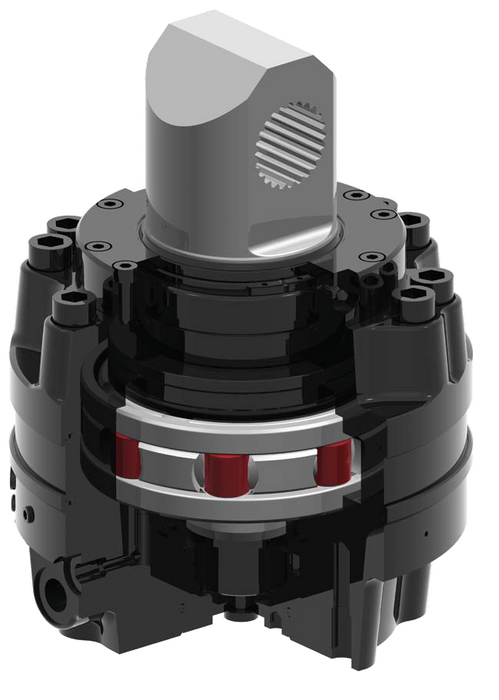

Hydraulic rotators
Black Bruin rotators are based on the principle of radial piston hydraulic motors.
A good rotator is easy to use, robust and, above all, resistant to extreme working conditions. The long life of Black Bruin rotators is guaranteed by the design of the radial stroke curve and pistons, which are precisely balanced. This ensures a high and at the same time constant torque throughout the life of the rotator.
Features:
- piston design without wear - so no polluting particles get into the system
- high constant torque over the entire range
- possibility of precise control
- robust construction
- long service life without torque drop
Black Bruin rotators are designed mainly for harvester heads and enable highly efficient logging. Thanks to their durability, usability, excellent load capacity and high constant torque, they are suitable for extreme working conditions.
Features:
- BBR H and RH3016 versions
- torque 1600 to 3480 Nm
- load 80 to 160kN

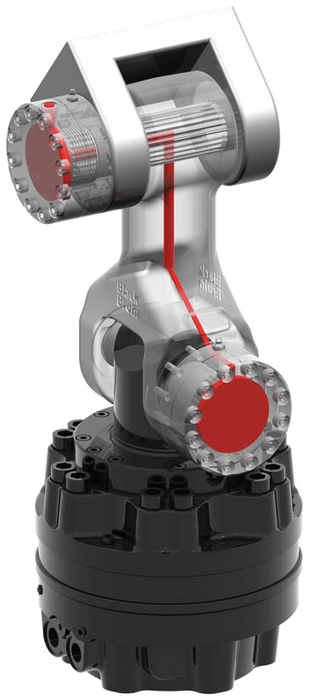

Black Bruin offers a complete system, so in addition to rotators, there are also several types of hinges and suspension brakes.

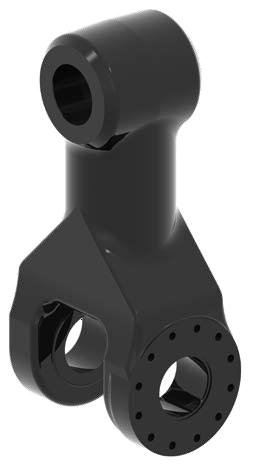

hinges:
- light and compact design
- various types to use for harvesters
- for different brake designs
- 1J - single brake, lower
- 2J - double brake, upper and lower
- 2K - double brake, upper and lower (with the possibility of symmetrical lower brake)
Brakes:
- multi-disc brakes of unique design
- durable brake discs - constant braking torque
- easy serviceable construction
- long maintenance interval
- versions with spring or hydraulic control
https://www.blackbruin.com/media/black_bruin_rotators_en_d.pdf

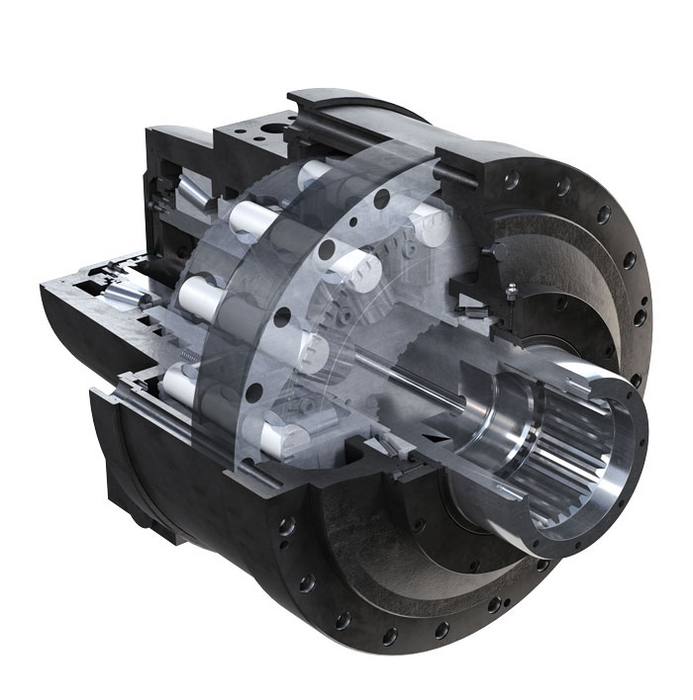

S series hydraulic motor
Black Bruin S series are radial piston hydraulic motors with external stroke curve and rotating shaft. Maximum geometric volume 18900 cm3 and power up to 500 kW.
They are designed mainly for the most difficult industrial applications such as crushers, mills, winches, drilling rigs, etc.
There is also a version with a hollow shaft, which can be used for cabling or transporting liquids (eg due to cooling of the driven equipment, ...).
Features:
- geometric volume 4400 to 18900 cm3; with a torque of up to 135000 Nm
- max. working pressure 450 bar
- several types of output shafts
- 1- or 2-speed design
- design with brake braking torque up to 95000 Nm
- compact installation
- high load capacity
https://www.blackbruin.com/products/hydraulic-motors/s-series
https://www.blackbruin.com/media/black-bruin-s-series-industrial-hydraulic-motors-en.pdf

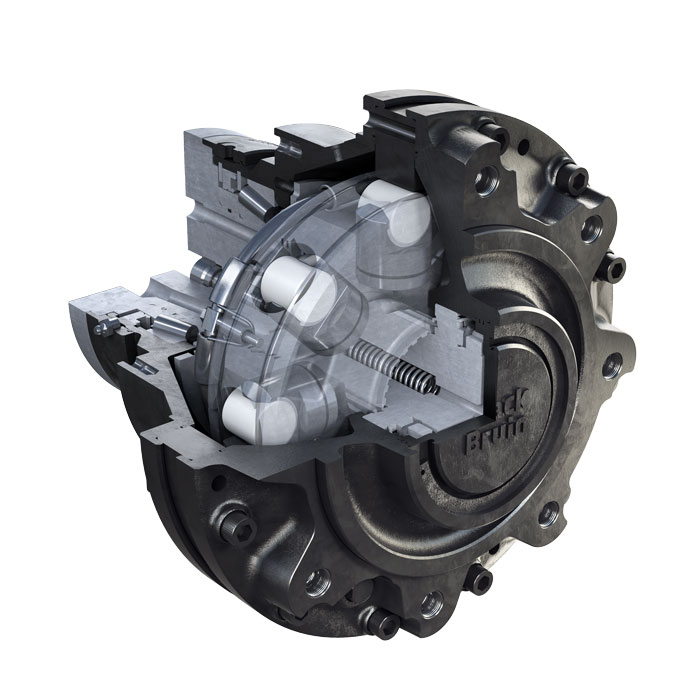

B200 series hydraulic motor
Black Bruin B200 series are radial piston hydraulic motors with external stroke curve and rotating body. They are designed mainly for applications of assisted drive of sidings and trailers - wheel drives. The Black Bruin B200 series wheeled hydraulic motors are designed to be able to generate traction on tractor trailers and work equipment. These hydraulic motors are suitable for agriculture, forestry and earthworks. The non-driven wheel of the trailer causes resistance to movement, but the Black Bruin hydraulic motor transmits the traction force exactly where it is most needed - under load. More traction is generated whenever it's needed (On Demand) and with Black Bruin-powered wheels you can ride even in the worst conditions.
And when the machine is on the road, the hydraulic motors are safely released. Black Bruin hydraulic motors are the right choice for mobile applications, as the freeweeling of the hydraulic motor can be done mechanically - without active hydraulics. Driving on roads without special hydraulics leads to significant savings in the steering system and fuel consumption.
Features:
- geometric volume 630 to 6300 cm3; torque 3500 to 45000 Nm
- max. working pressure 450 bar
- 1- or 2-speed design
- unique mechanical freewheeling - hydraulic motor disconnection
- version with parking brake
- well sealed against oil leaks
- compact installation
- high load capacity
https://www.blackbruin.com/products/hydraulic-motors/b200-series
https://www.blackbruin.com/media/black-bruin-b200-on-demand-wheel-motors-en.pdf
