DANFOSS - The new generation of Orbital X hydraulic motors

DPS orbital

The requirements for machines and equipment are increasing and tightening daily. Danfoss has responded to this trend and offers a new standard in orbital motors - Orbital X.

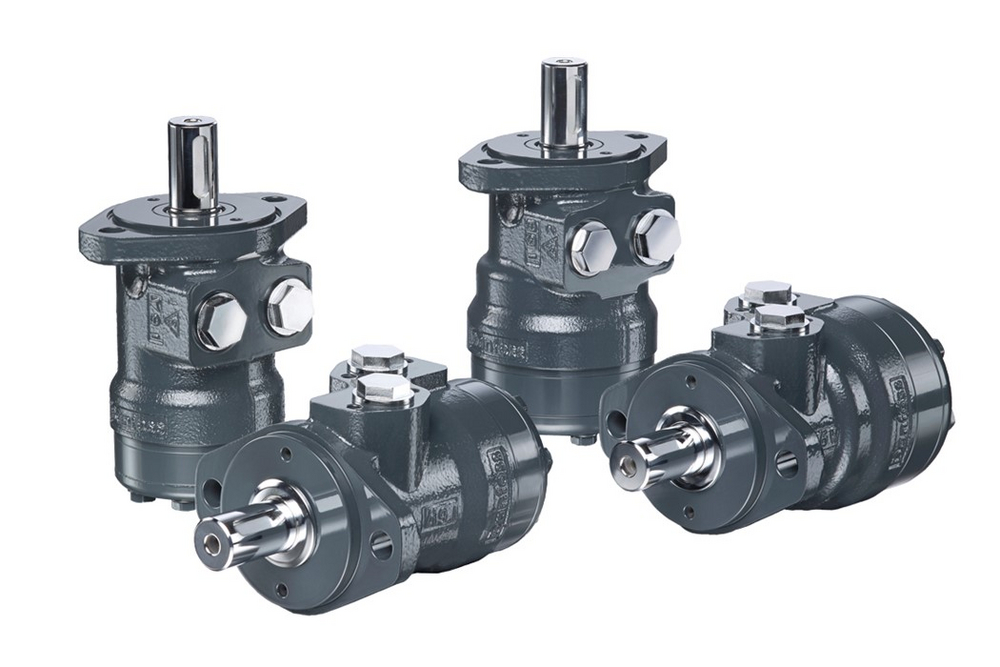

Orbital X is a new generation of proven OMP and OMR hydraulic motors.

Improved parameters

  • Up to 15% more torque than current OMP / OMR hydraulic motors
  • Higher radial and axial load on the shaft
  • Improved shaft seal extends hydraulic motor life

High efficiency

  • Continuously high efficiency throughout the life of the product
  • Reduced risk of failure

Flexible concept

  • 2 new modular product platforms provide high flexibility in many applications
  • Hydraulic connections - flush (offset), offset (offset) and end (axially) compatible with existing applications
  • Flexibility and compatibility allow easy conversion

Improved delivery time and availability

  • 50% reduction in delivery time
  • Delivery time in Europe is shortened by 2 weeks
  • Delivery time in North America improves by 4 weeks

Higher quality

  • Extended shaft seal life approx. 50%
  • Improved shaft seal protection with new O-ring
  • Improved coating provides increased corrosion resistance


In May 2017, Danfoss informed its customers for the first time that it is starting a two-year conversion of OMP, OMR, DH and DS orbital engines. In June 2019, the announcement was made that the OMP and OMR engines were fully interchangeable with the new OMP X and OMR X engines.

Danfoss Power Solution has now begun the next phase of completing the conversion of the OMP and OMR engines to Orbital X. The OMP and OMR engines will be out of series production this year. For this reason, Danfoss offers a last purchase option until October 1, 2020 with an expected delivery date no later than December 31, 2020.

Some selected OMP and OMR engine types will remain in the production program. Spare parts will remain available until the end of 2027.

OML, OMM

  • max. torque to 100 Nm
  • nominal size from 8 to 50 cm³/U

OMP, OMR, OMEW

  • max. torque to 1170 Nm
  • nominal size from 25 to 500 cm³/U

OMS, OMT, OMV

  • max. torque to 2110 Nm
  • nominal size from 80 to 800 cm³/U

TMK, TMT

  • max. torque to 2735 Nm
  • nominal size from 250 to 630 cm³/

Features & Benefits

  • High bearing load capability and robust cardan shaft design for a longer motor life.
  • Valving system and precise machining for high efficiency and, as a result, low fuel consumption.
  • Numerous adaptations for flexible design of compact systems.

Application Opportunities

Suitable for closed and open loop hydraulic circuits for work and propel systems, our orbital motors are ideal for agricultural, road building, agricultural, construction, forestry, public utility and lawn garden equipment.
