MICRO-HYDRAULICS: Small "power pack" units

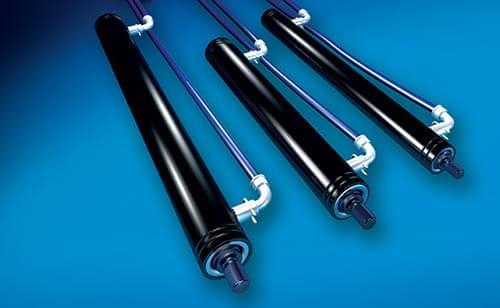

Bansbach Easylift GmbH, a reliable manufacturer of gas springs (pushing, pulling, locking ...), also has small rectilinear hydromotors in its portfolio.

With new micro hydraulic cylinders, high forces can be realized in a compact construction. With a standard piston diameter (13 to 24 mm) and a maximum pressure (200 bar), the force up to 9000 N can be achieved. The cylinder stroke is optional and respects the requirements of your application.

Since Bansbach uses parts together for the production of gas springs as well as for hydraulic cylinders, it achieves high flexibility and delivery in very short timeframes.

Characteristics of cylinders:

  • Piston diameter: 13, 16, 19 and 24 mm.
  • Stroke: 30 to 250 mm.
  • Function: double-acting.
  • Operating pressure: max. 200 bar (max. 10 seconds, 15% load cycle).
  • Excavating force: up to 9000 N.
  • Medium: HL-HLP mineral oil according to DIN51524.
  • Temperature of the medium: from -20 ° C to 80 ° C.
Piston DiameterConnecting Part Piston RodConnecting Part CylinderDiameter
Piston Rod/
Cylinder		StrokeLength E
(EL1*) Retracted		Index No.*

HZ19

J0

J0

2

150

214

001*
HZ13 = Ø13

HZ16 = Ø16

HZ16 = Ø16

HZ19 = Ø19

HZ24 = Ø24		see connecting
parts		see connecting
parts		6 = 6/15

0 = 8/19

P = 10/19

2 = 10/22

5 = 14/28

30-50

40-100

40-190

50-150

50-250

stroke + 55

stroke + 61

stroke + 61

stroke + 64

stroke + 76		*only necessary for
repeating orders

* EL1: total length is displayed in the retracted state.

Please add the lengths of the connecting ends (if required) to obtain the total length of the hydraulic cylinder.

Dimensions:

Couplings:

Connectors for standard high pressure hoses with DN2 plug connectors

Bansbach MICRO-HYDRAULICS
Bansbach MICRO-HYDRAULICS

Maximum stroke lengths

They are determined in relation to the cylinder force (to prevent the fold)

Ø
Piston

Ø
Piston Rod

Stroke max
at
80 bar		Stroke max
at
100 bar

Stroke max
at
120 bar

Stroke max
at
140 bar

Stroke max
at
160 bar

Stroke max
at
180 bar

Stroke max
at
200 bar


13

16

16

19

24
 		6

8

10

10

14		125

200

350

290

450		105

172

305

246

395		91

152

270

220

352		78

134

245

198

318		66

120

222

180

290		58

107

205

165

266		50

100

190

150

250

For more information, visit www.bansbach.de
