ECKART - Rotary motors
ECKART GmbH develops and manufactures for over 48 years components providing rotary and combined swivel-sliding movements.
ECKART's main products include:
- Rotary motors / rotary actuators
- Drive units of armatures
- Rotating-sliding units
- Direct hydraulic motors
- Pneumatic drives

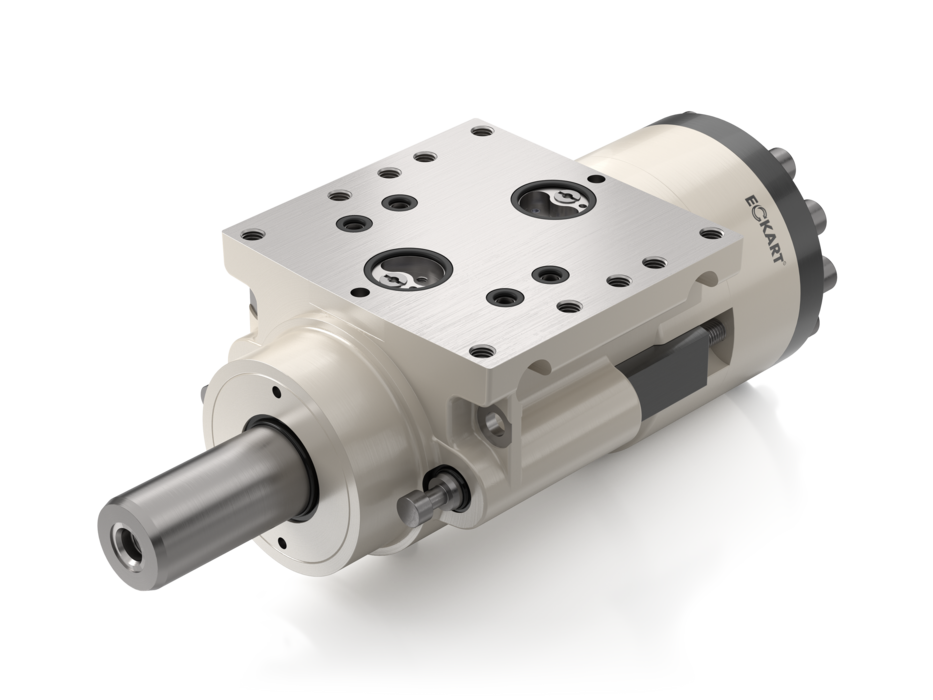

- Special equipment according to customer requirements (tool changers, mini dump engines ...)
1. Rotary motors / rotary actuators
![SM4](https://www.bibus.sk/fileadmin/_processed_/0/7/csm_Eckart-SM4_Cutaway_Rot_672887886e.png)
![SM4](https://www.bibus.sk/fileadmin/_processed_/e/d/csm_Eckart_SM4-Schwenkmotor-Z1_30fs_f5c8c84eb2.png)

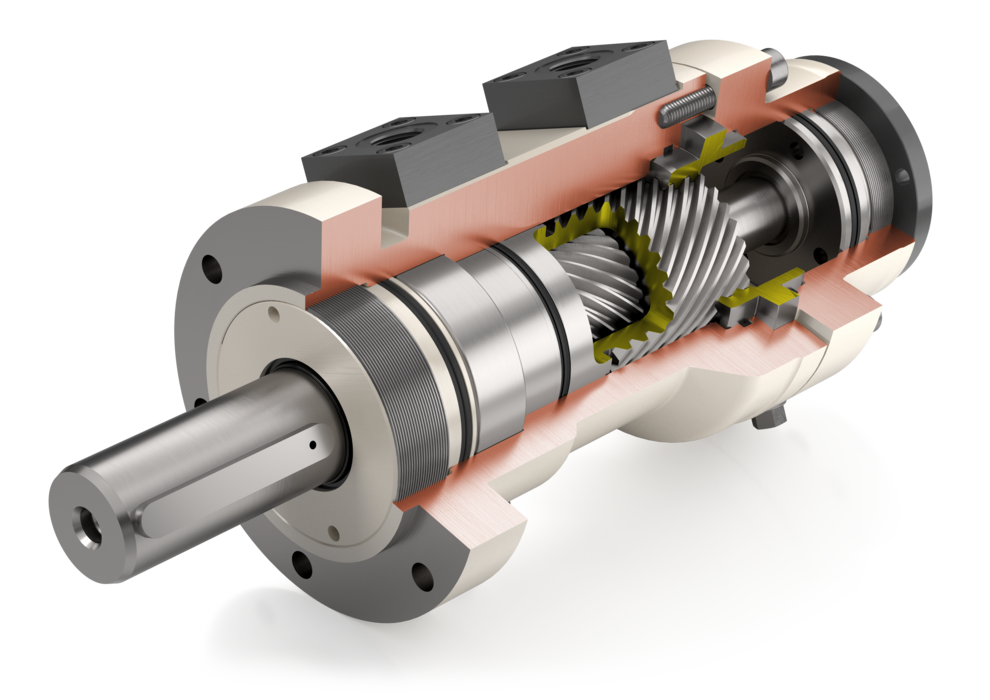

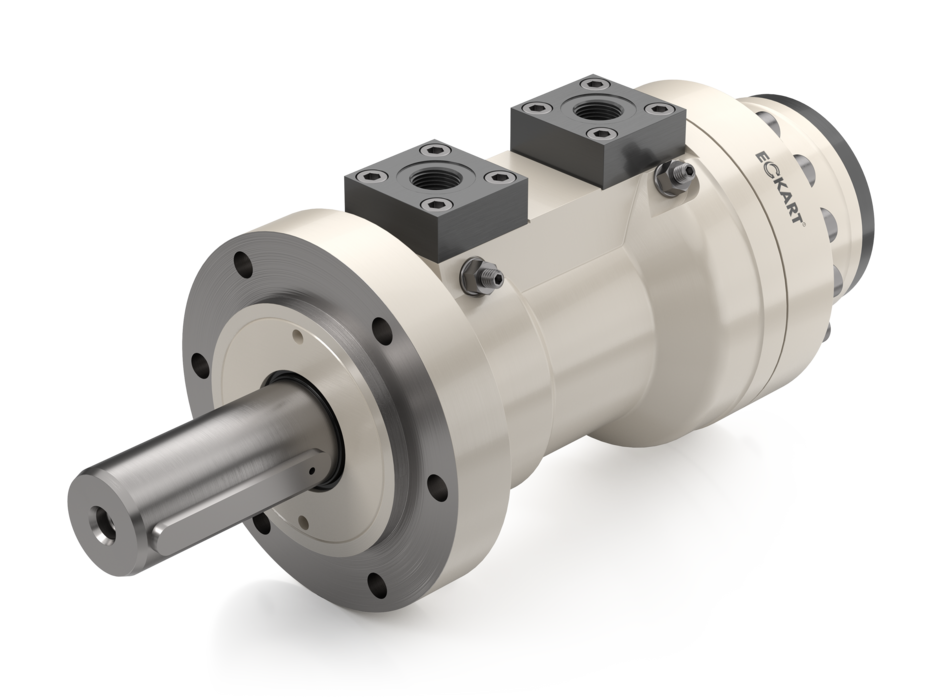

SM4 rotary motor:
- Working pressure up to 250 bar
- Torque up to 250,000 Nm
- Angle of rotation up to 360 °
- Connection: flange, foot
![E1](https://www.bibus.sk/fileadmin/_processed_/d/4/csm_Eckart_E1-Schwenkmotor-Z1_30fs_4682bfef72.png)

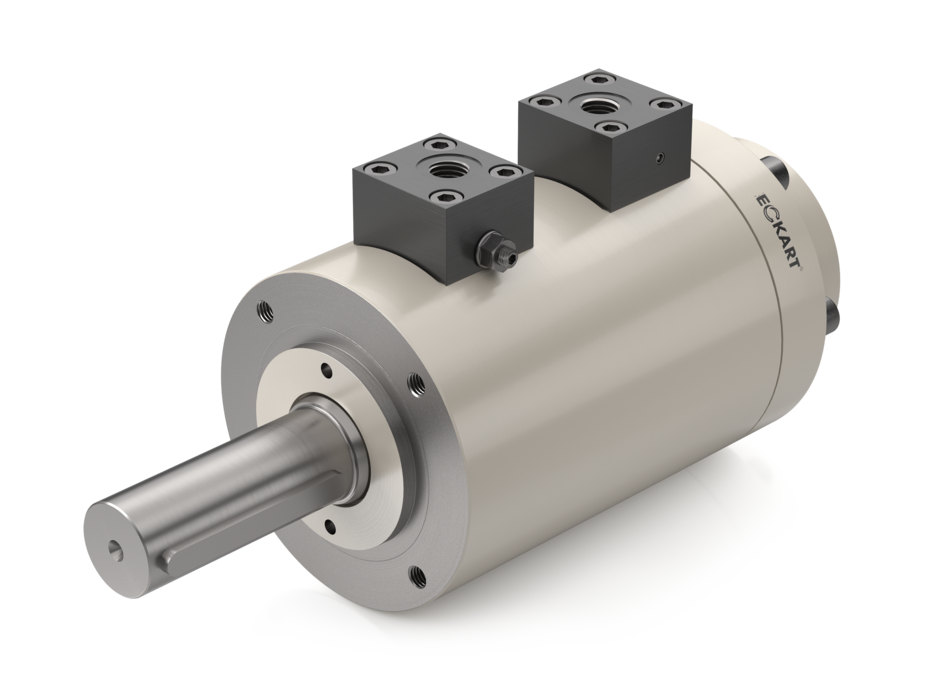

Rotary motor E1:
- Working pressure up to 100 bar
- Torque up to 2450 Nm
- Angle of rotation up to 360 °
- Connection: flange, foot
![E3](https://www.bibus.sk/fileadmin/_processed_/c/5/csm_Eckart_E3-Schwenkmotor-VB_30fs_467d331355.png)

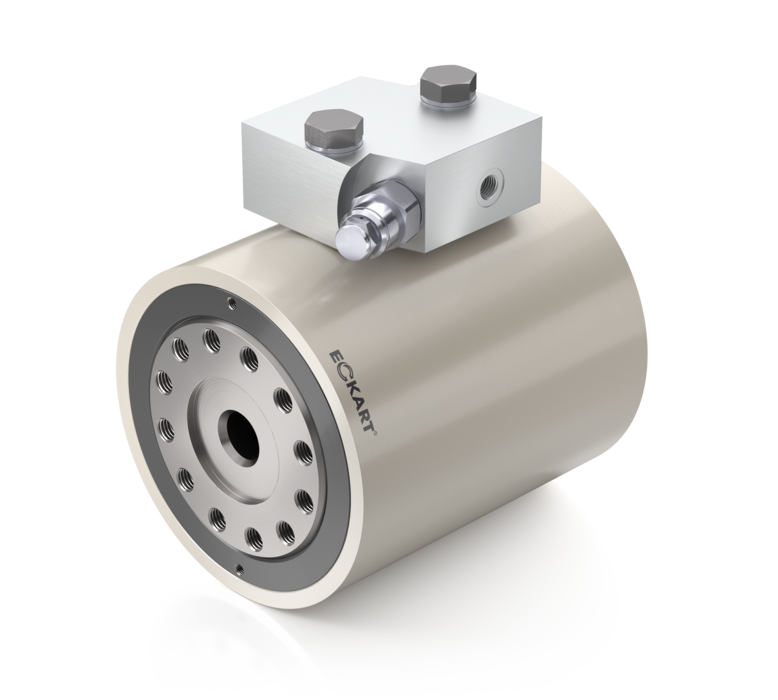

Rotary motor E3:
- Working pressure up to 210 bar
- Torque up to 3600 Nm
- Angle of rotation up to 360 °
- Connection: Flange
2. Drive units of armatures
![HYRAV](https://www.bibus.sk/fileadmin/_processed_/d/a/csm_Eckart_HyRAV-Flex-D_L_30fs_e5f2c69bc2.png)

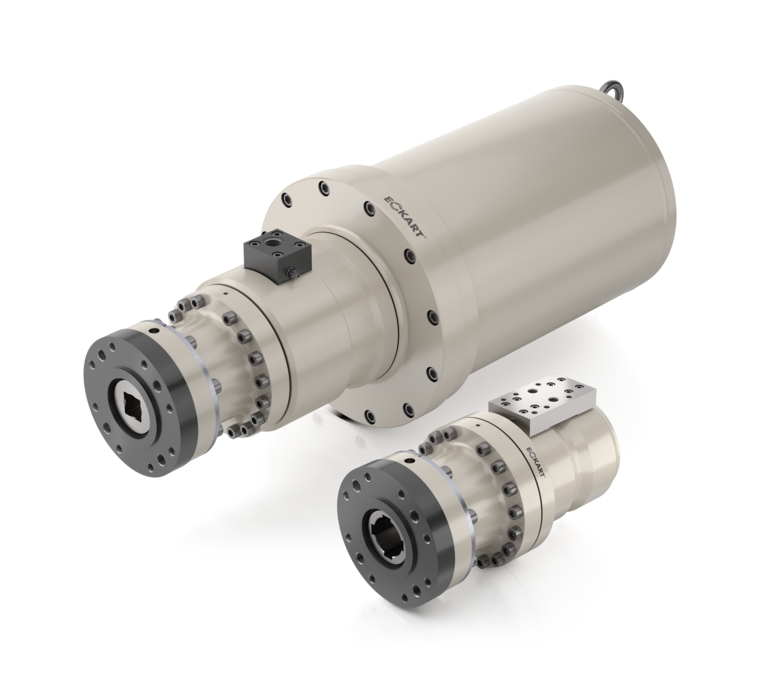

HyraV:
- Working pressure up to 210 bar
- Torque up to 250,000 Nm
- Angle of rotation up to 90 °
- Connection: DIN 5411, ANSI
3. Rotary-sliding units
![HSE4](https://www.bibus.sk/fileadmin/_processed_/b/0/csm_Eckart_HSE4-Hub-Schwenk-Einheit-Z1_30fs_57b31a1e5d.png)

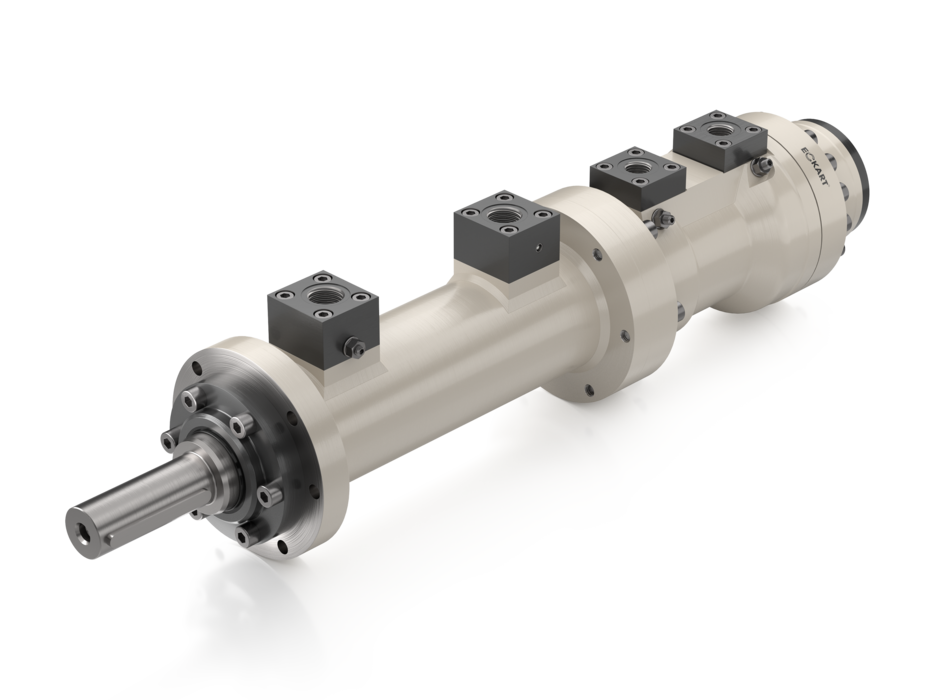

HSE4:
- Working pressure up to 250 bar
- Torque up to 34,000 Nm
- Connection: flange, foot
- Stroke up to 1200 mm
4. Direct hydraulic motors
![](https://www.bibus.sk/fileadmin/_processed_/a/5/csm_eckart_hydraulik-zylinder-bgk-sgk_30fs_452197728d.png)
EHZ:
- Working pressure up to 250 bar
- Connection: flange, foot
- Stroke up to 1500 mm
![](https://www.bibus.sk/fileadmin/_processed_/9/7/csm_Eckart_Hydraulik-Zylinder-578_30fs_c06eb4c5d2.png)

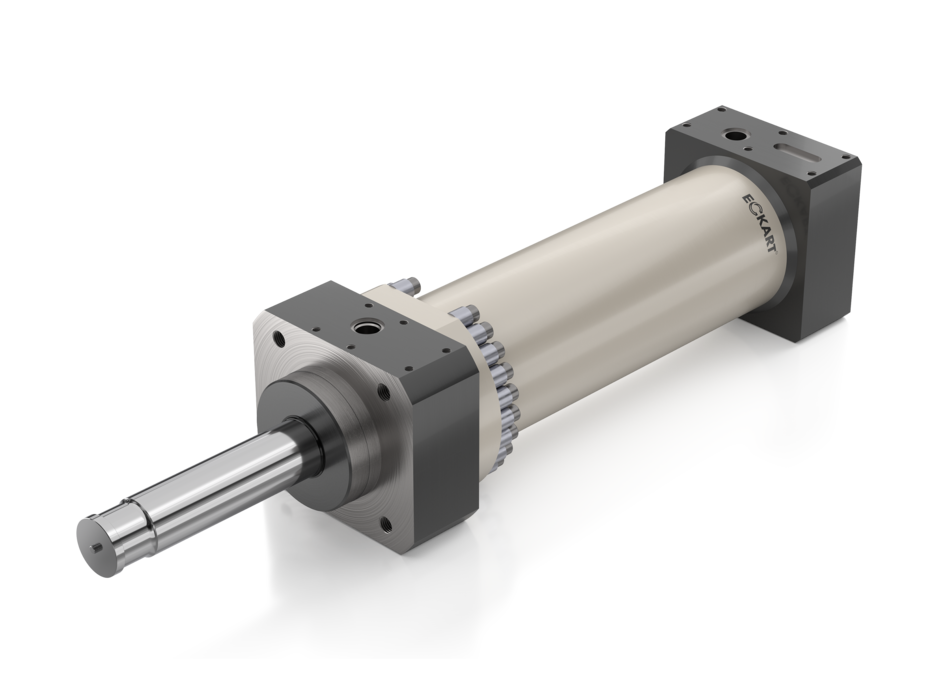

Special hydraulic motors:
- Working pressure up to 300 bar
- Connection: as required
- Stroke up to 1500 mm
5. Pneumatic drives
![PSM2](https://www.bibus.sk/fileadmin/_processed_/7/2/csm_Eckart_PSM2-Schwenkmotor-WZ_30fs_6a17fd84ad.png)

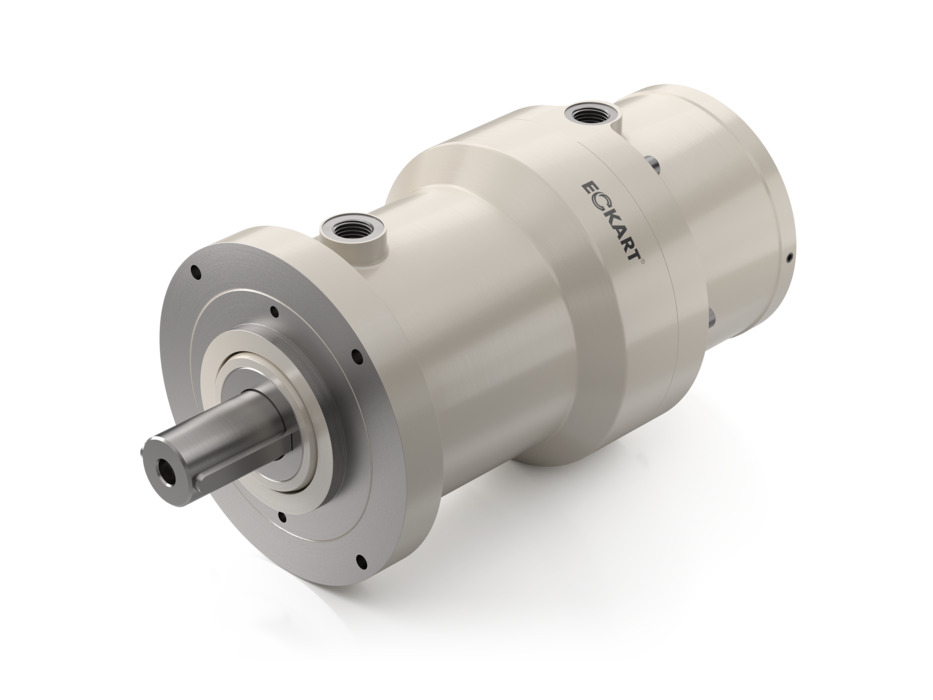

PSM2:
- Working pressure up to 6 bar
- Torque up to 78 Nm
- Angle of rotation up to 360 °
- Connection: Flange
![PHSE](https://www.bibus.sk/fileadmin/_processed_/e/7/csm_Eckart_PHSE-Hub-Schwenk-Einheit-Z1-Z6_30fs_1dc7920ec1.png)

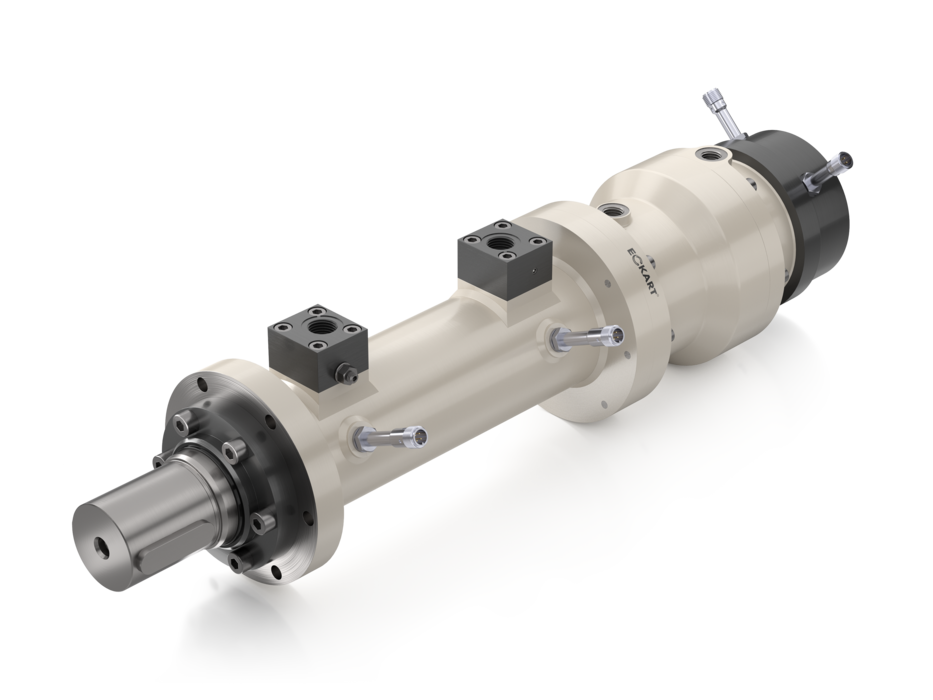

PHSE:
- Working pressure up to 6 bar
- Torque up to 144 Nm
- Connection: flange, foot
- Stroke up to 1200 mm
For more information, visit www.eckart-hydraulics.com
