Bühler temperature sensors
TF-M/E-G1/2
- Pt 100 RTD
- continuous signals
- dip tube up to 1 meter
- dip tube brass or stainless stell optional
- various connector options
MK2-G1/2/ EK2-G1/2
- cost effective temperature sensor with integrated transmitter
- continuous 4-20mA output
- dip tube up to 1 meter
- dip tube brass or stainless stell optional
- various connector options
TF-M-VAL
- Pt100 RTD spring loaded
- continuous signals
- various connector options

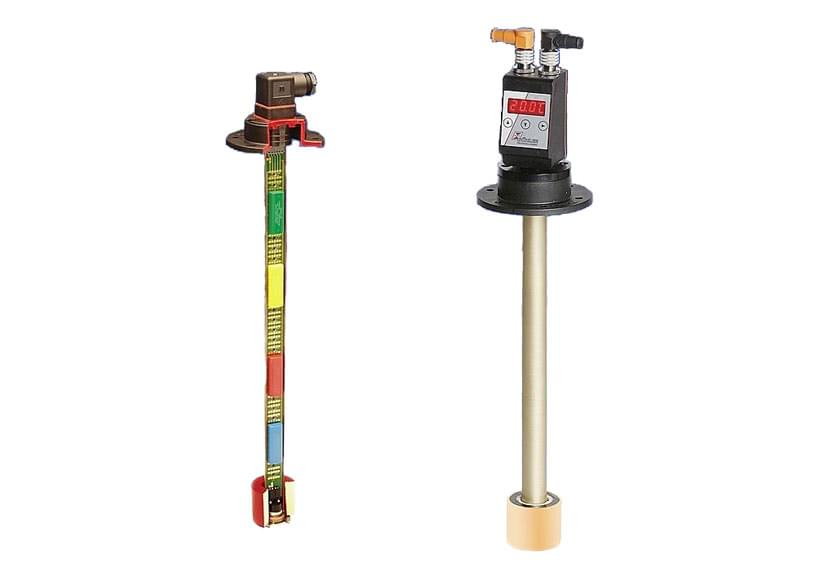

Combination sensor: float level switch and temperature sensor (Pt100)
- Mainly based on the float switch design, these controllers help to monitor the liquid level (as combined units they monitor both liquid level and temperature) in oil reservoirs of fluid power and lubrication systems.
- Attached to the tank top cover, they penetrate directly into the hydraulic fluid or the lubricant.
- Each of the following series offers particular features and details culminating in the extreme density of functions offered by the Multiterminal.
- Level switch Fluidcontrolterminal series
- High number of functions reduces requirements for installation, space and cost
- Adjustable level contacts
- Connecting flange according to DIN 24 557 part 2
- Directly attached electronic contact thermometers optional
- The FC terminals offer the functions of tank breathing, level/temperature control, filling and topping up and oil sampling in a very compact design.
