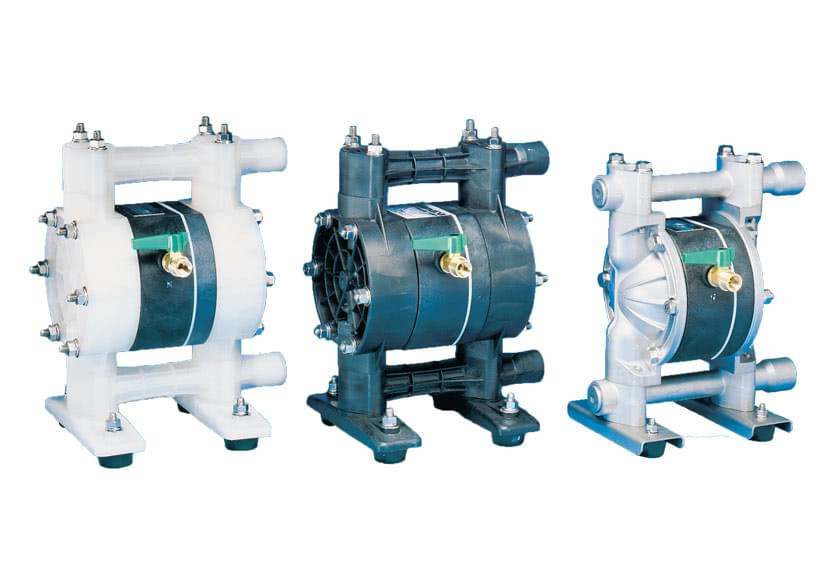

Y01.NDP-15 - Size 1/2" - Max. discharge volume 51 l/min

Air operated double diaphragm pumps are suitable for transferring hazardous, corrosive or abrasive liquids and used in a multitude of industries and applications. The pumps have an excellent wear resistance and are intrinsically safe (ATEX).

• Port dimensions ½” BSPT
• Air supply pressure 1.4 to 7 Bar
• Discharge volume up to 51 l/min
• Maximum dry suction lift 1.5 m (ball-type check valve), 2.4 m (flat-type check valve)
• Diaphragm materials CR, NBR, TPO, PTFE, FKM, TPEE
• Wetted materials PPG, groundable Acetal, Aluminium, Stainless Steel
